RICON | Joint for primary and secondary beam up to 26 kN*
System advantages:
- Application areas of hidden primary and secondary beam joints;

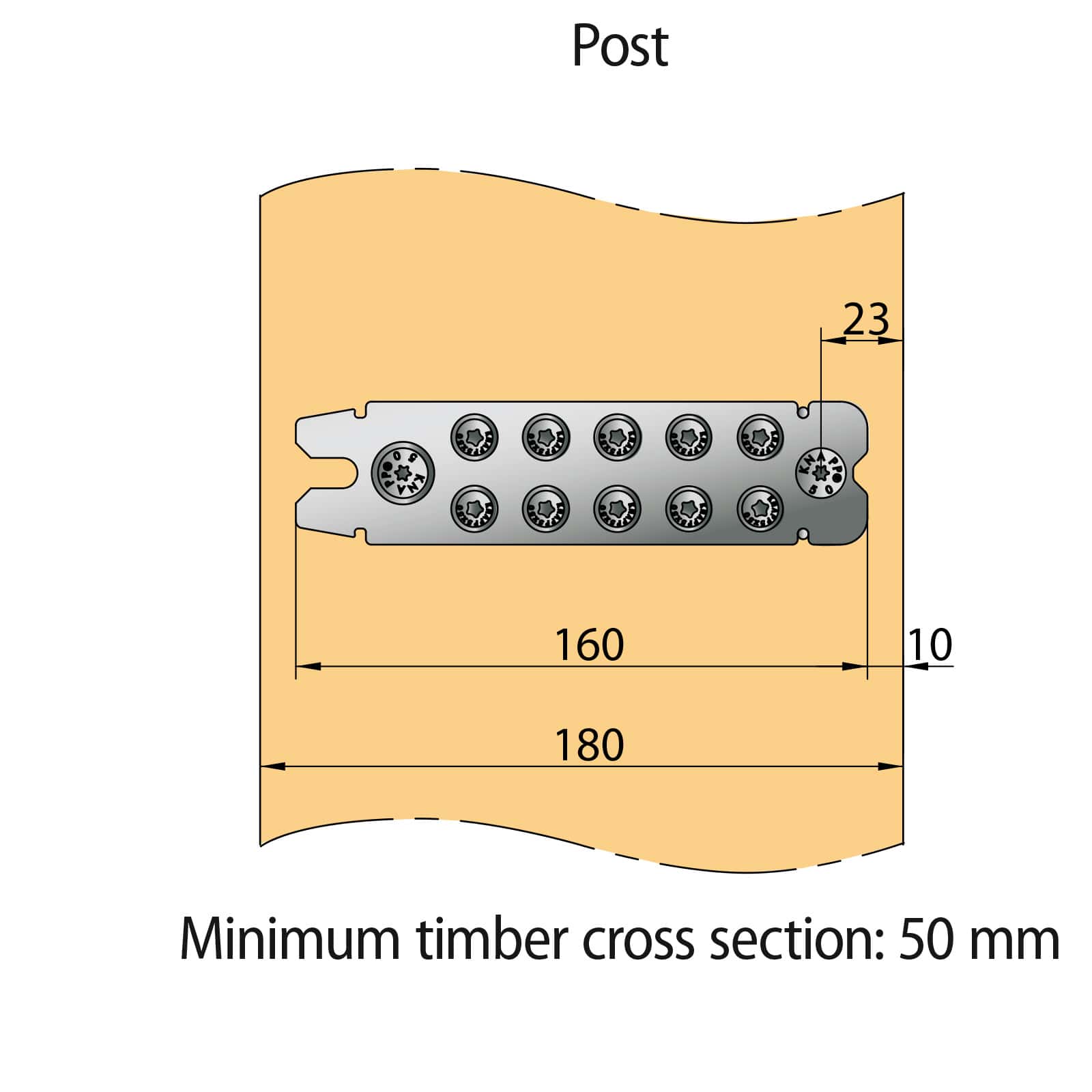

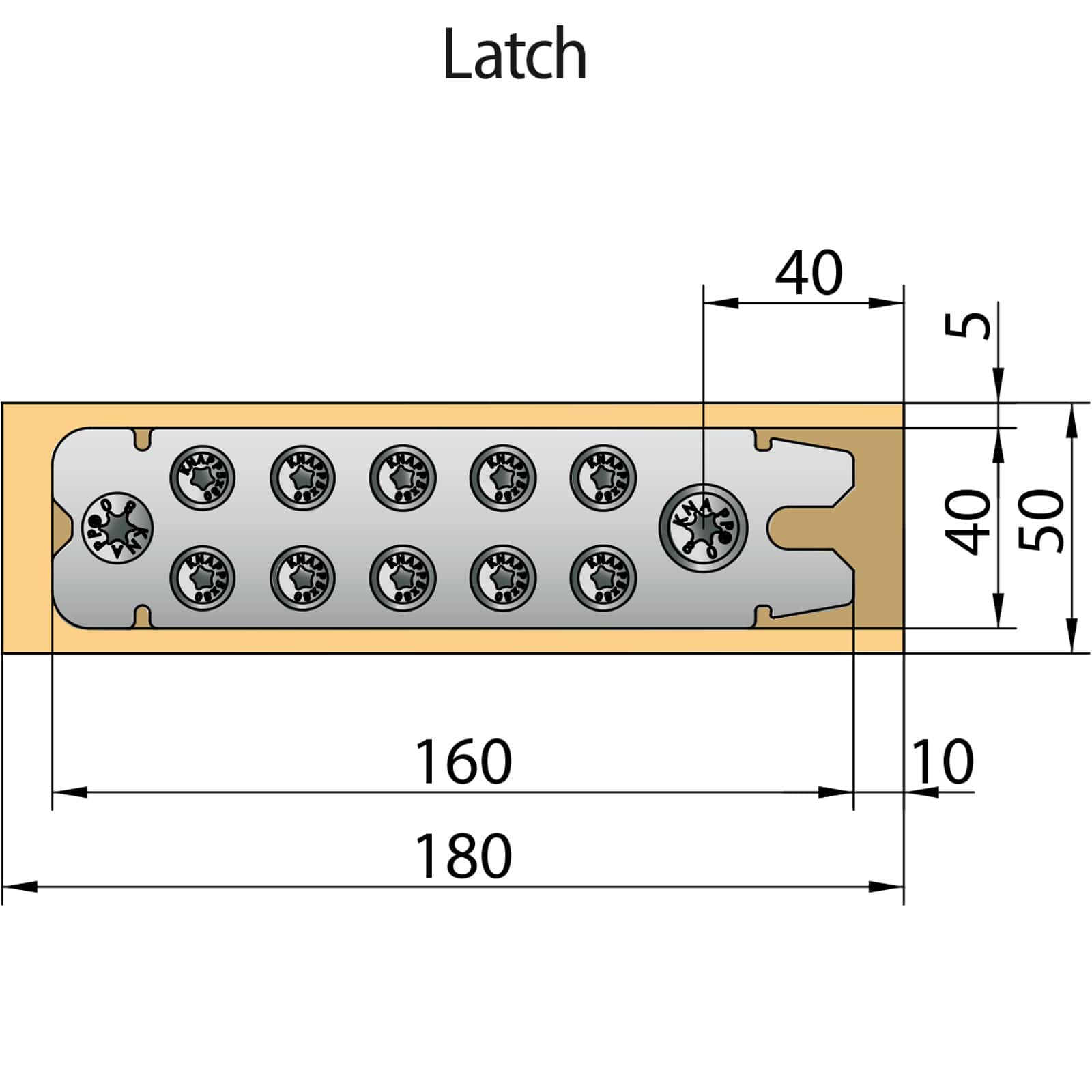

- Slim profile - wood width from 50 mm;
- Universal access to all wood materials, steel or concrete;
- High level of assembly - quick and accurate on-site installation;
- Elements are connected without screws;
- Adjustment of the distance between joints and construction deviations;
- Fire resistance (DIN 4102-2) due to four-sided hidden mounting;
- Allowed to use with an intermediate layer;
- Possible disassembly and reassembly several times;
- Increased corrosion resistance in indoor pools, riding halls, stables and agricultural buildings;
- ETA additionally with hardwood material.
1. Due to the tail shape, the RICON supporting CS screws fit optimally. Due to the short pressing distance, it is easy to hook, and the plate connection ensures tightness and quick assembly of elements.

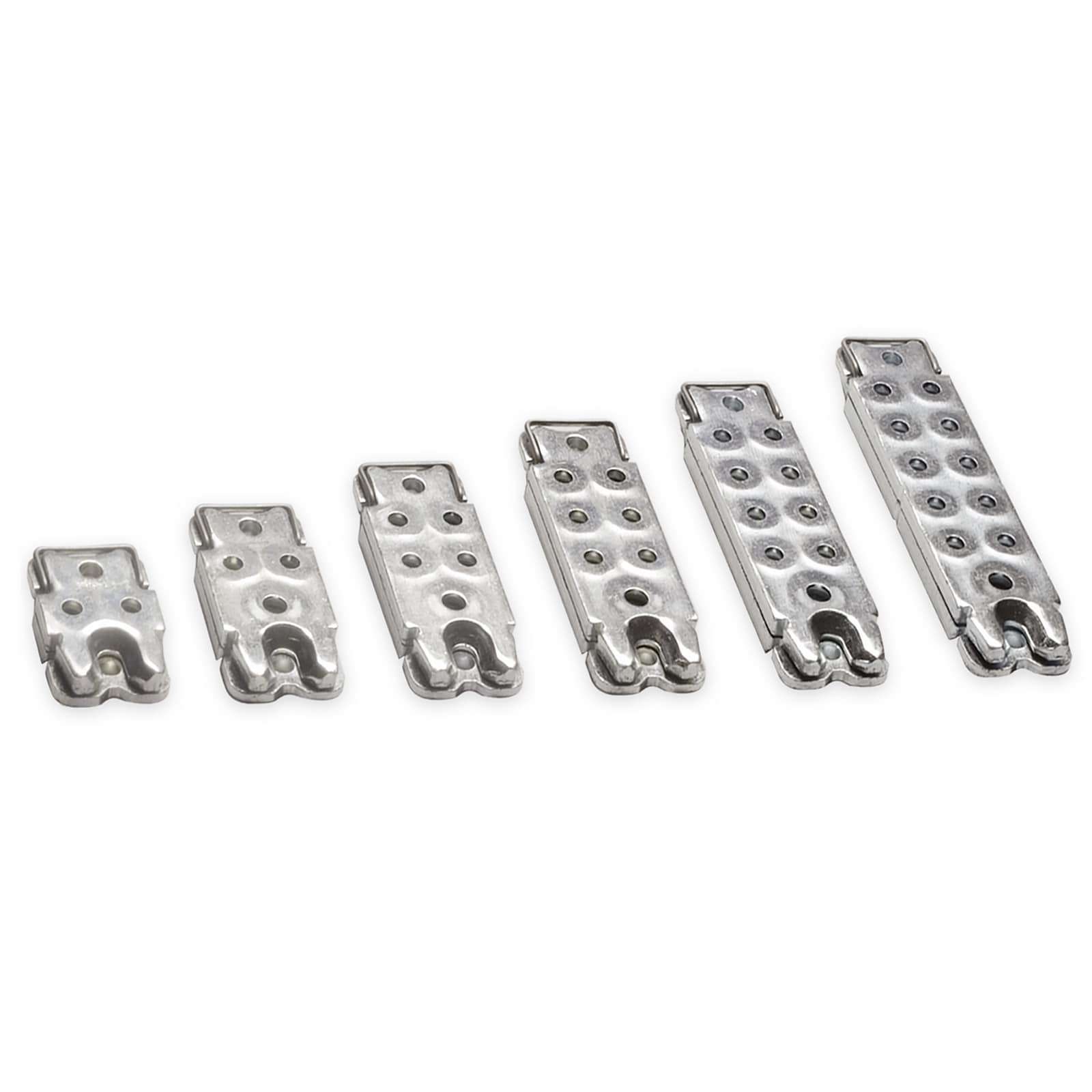

2. RICON consists of two identical parts. It is made in Austria from the highest quality steel, also supplied hot-dip galvanized.

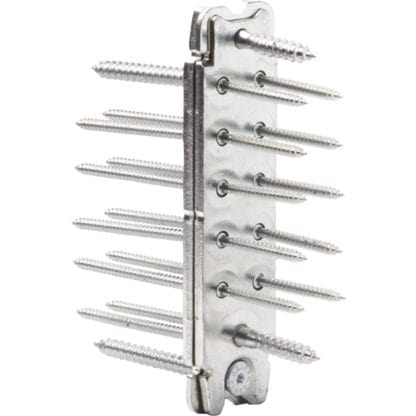

3. Ø 5 mm and Ø 8 mm RICON CS screws. These adjustable support screws compensate for production deviations. The reinforced shaft with an integrated stop ensures precise positioning.
4. The stainless steel joint can be inserted into the position setting holes before final assembly.
