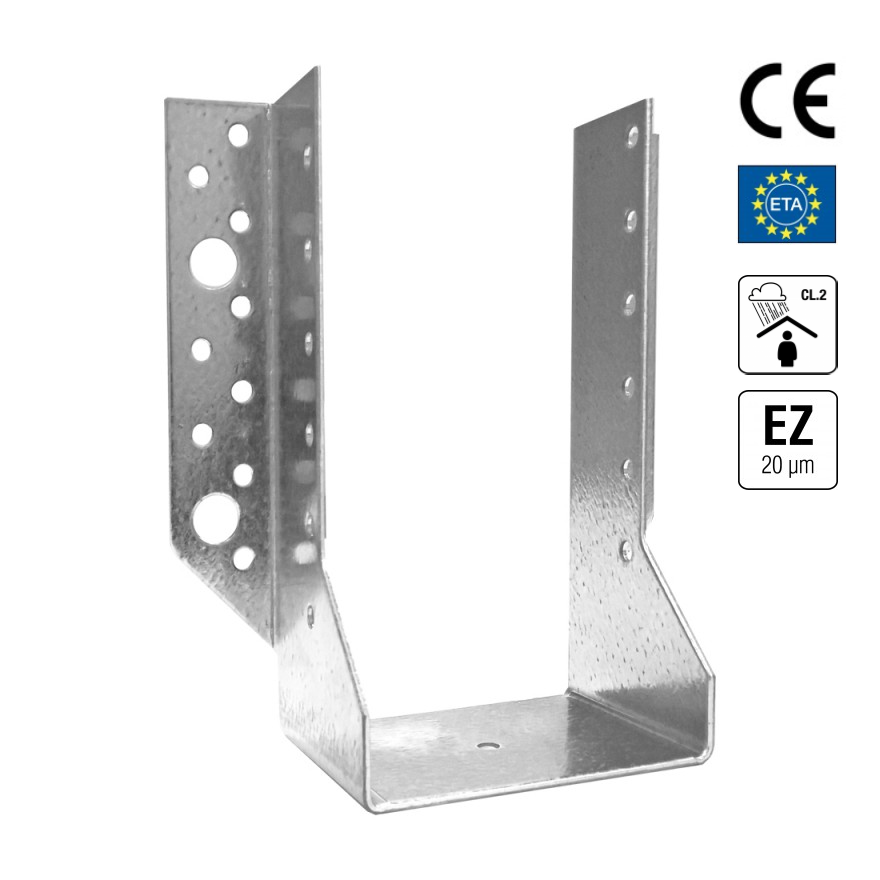

BSNN120/190 - Beam Holder (120 x 190 mm)

The BSNN series are sturdy brackets designed for use in cases where exceptional durability is required. The brackets are attached using the CNA system screws, but their surface also has holes for 12 mm fasteners. The depth of the bracket should be at least 2/3 of the height of the supported element to avoid structural displacement, unless additional lateral reinforcement is added to the top of the supported element.

Material:

• Galvanized steel S250GD + Z275 according to EN 10346 (thickness: 2 mm).

Advantages:

• BSNN beam brackets are also approved for three-axis loads;

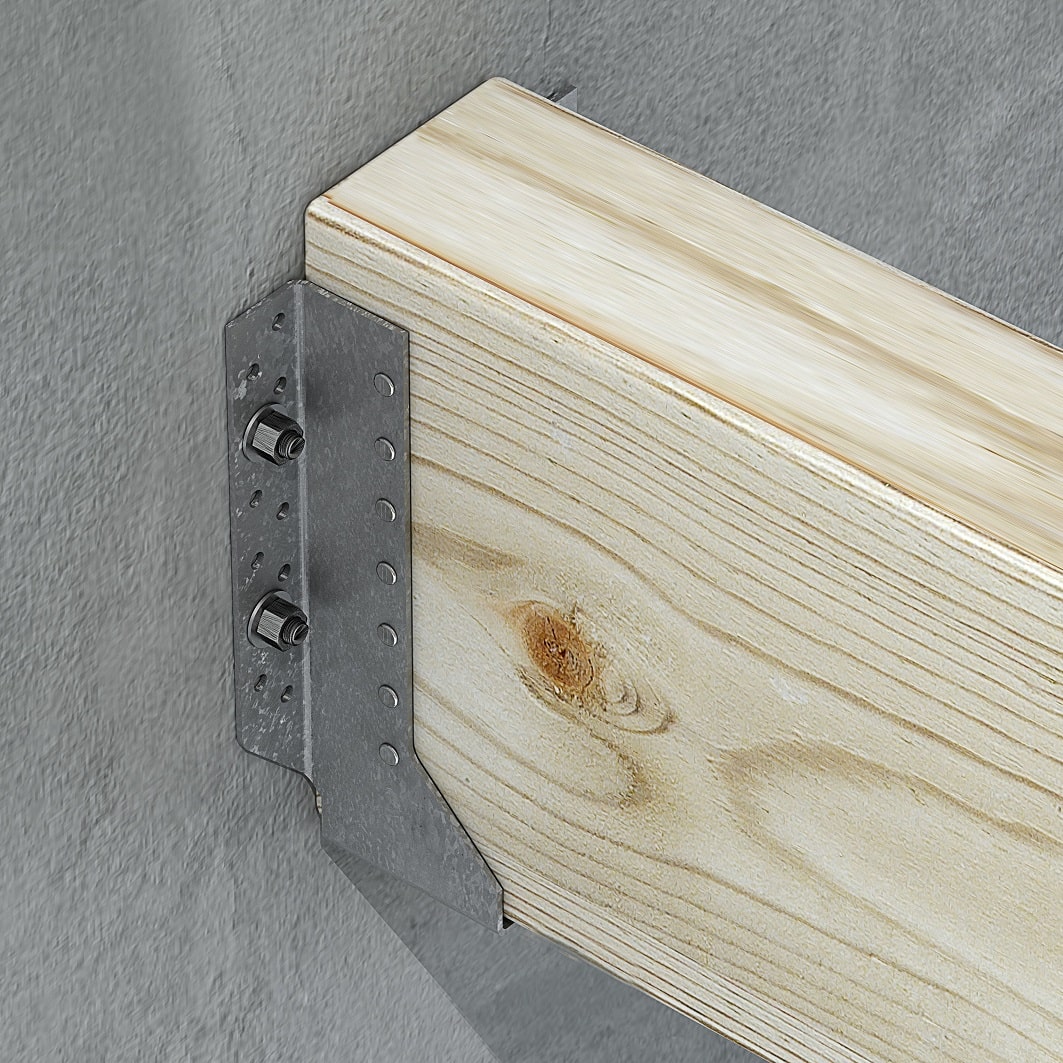

• Connections with concrete, steel and masonry are allowed.

Usage:

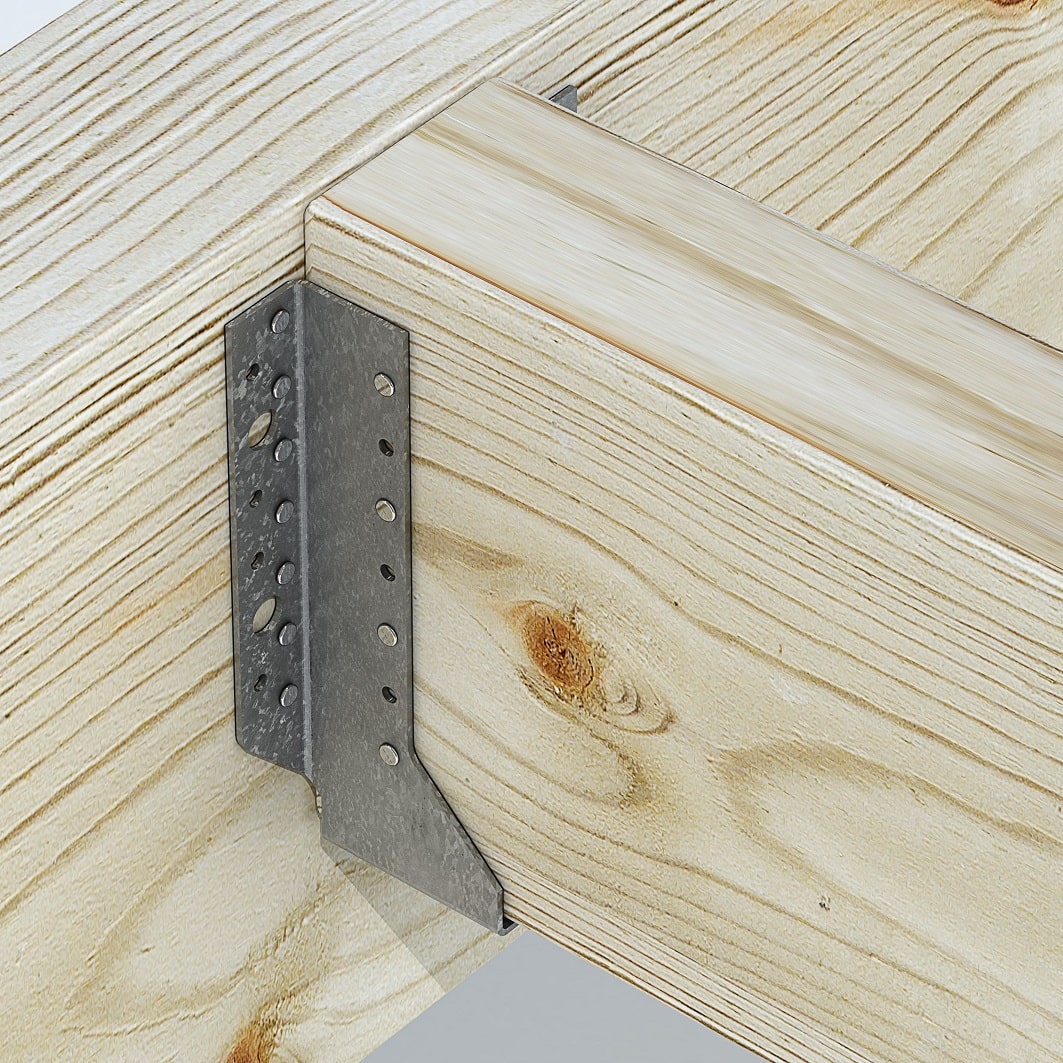

• Beams, crossbars, joists, rafters;
• Reinforcement of existing joints.
