PVDB120G Simpson Strong-Tie - Adjustable Column Support

Name: PVDB120G Simpson Strong-Tie - Adjustable Column Support
Brand: Simpson Strong-Tie
SKU: PVDB120G
Availability: OutOfStock

Shipping calculated at checkout.

Availability: Out of stock

SKU: PVDB120G

Collections:

Simpson Strong-Tie,
Wall and column supports

Simpson Strong-TiePISBMAXIG-B Simpson Strong-Tie - Column Support

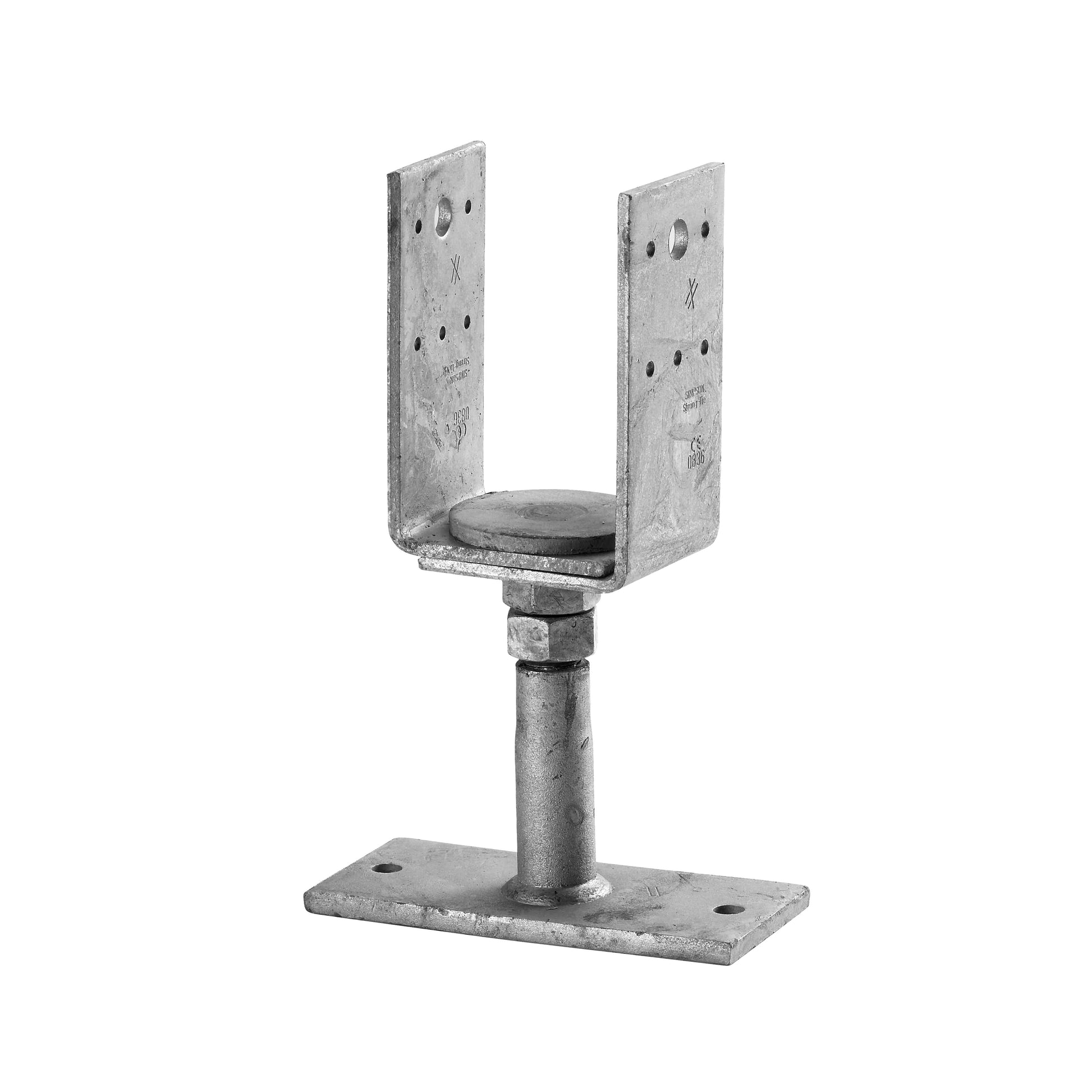

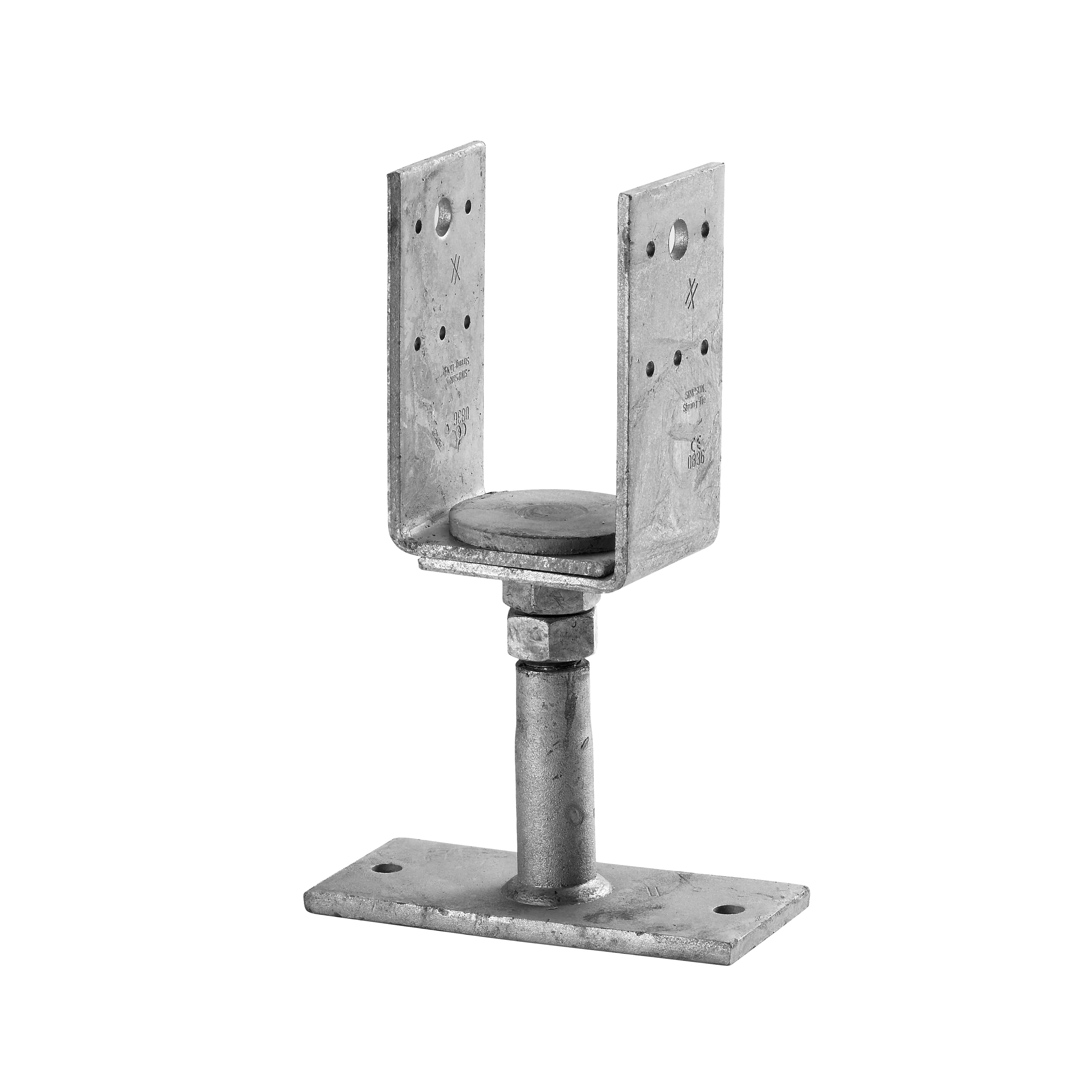

Simpson Strong-TiePPB80G Simpson Strong-Tie - Adjustable Column Support

Description

Specifications

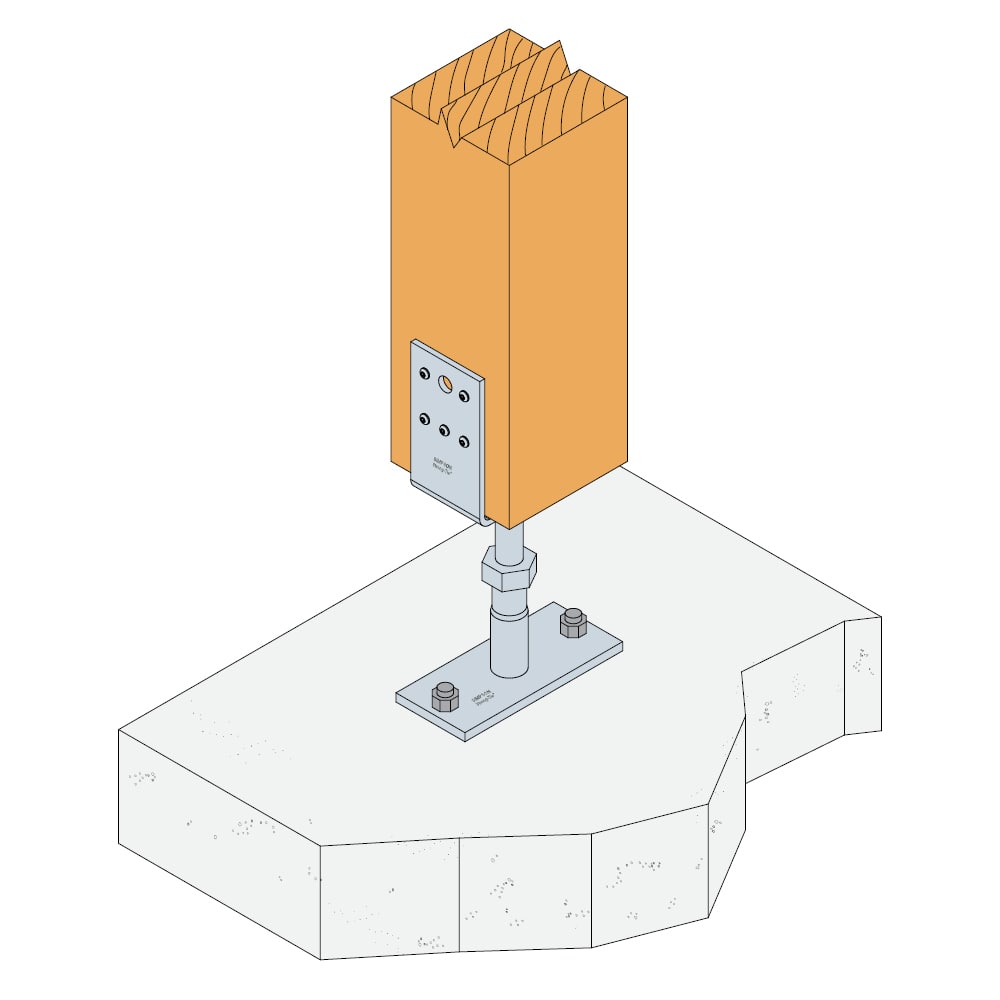

The adjustable height and width PVDB column support can be used for all 80-120 / 120-160 mm width woodwork. PVDB is attached to concrete.

Brand

Simpson strong-tie

Type

Column support

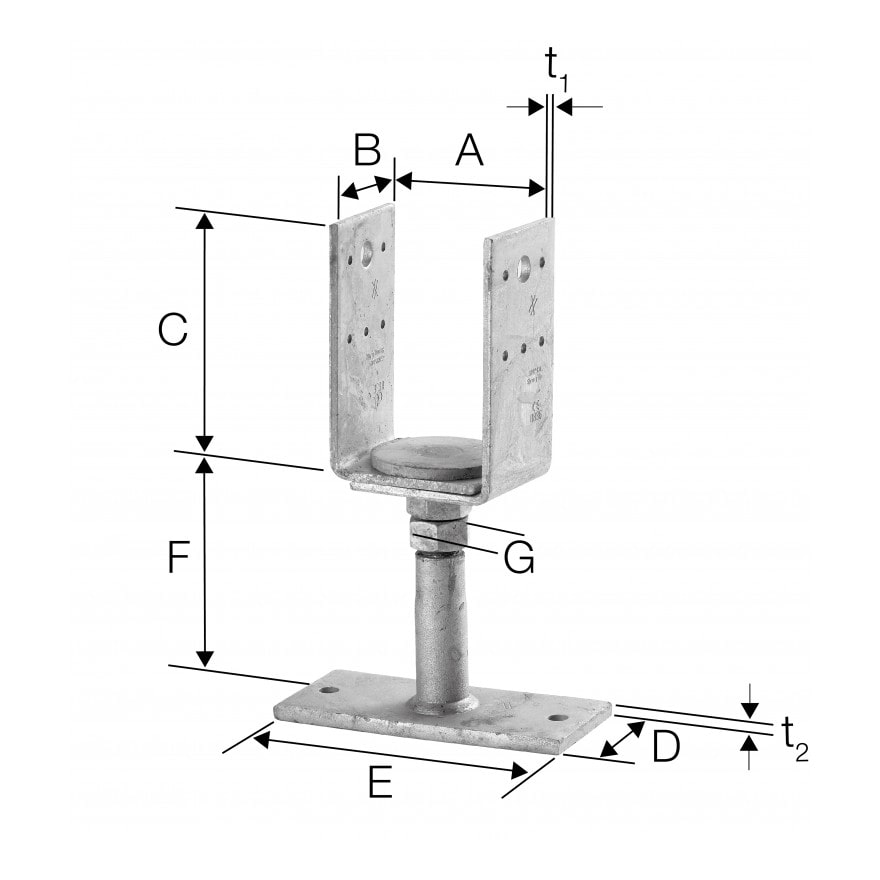

Adjustable_height_f

136-189 mm

Adjustable_width_a

120-160 mm

Diameter_g

20 mm

Height_c

120 mm

Length_b

70 mm

Length_d

70 mm

Material

hot-dip galvanized steel

Thickness_t1

5 mm

Thickness_t2

8 mm

Width_e

160 mm
