MAX TA116A/22-9 - Hinge Forging Tool (6 - 16 mm) (22 ga)

€140,60 / Unit
€0,00 €140,60 / Unit
Shipping calculated at checkout.
Availability: Low stock: 6 left
SKU: TA116/21-13
Collections:
OmerOMER M2.65 - Hinge Boring Tool (20 - 65 mm) (16 ga)
OMER M2.65 - Hinge Boring Tool (20 - 65 mm) (16 ga)
MAX TA238B/18-6 - Hinge Installation Tool (13 - 38 mm) (18 ga)

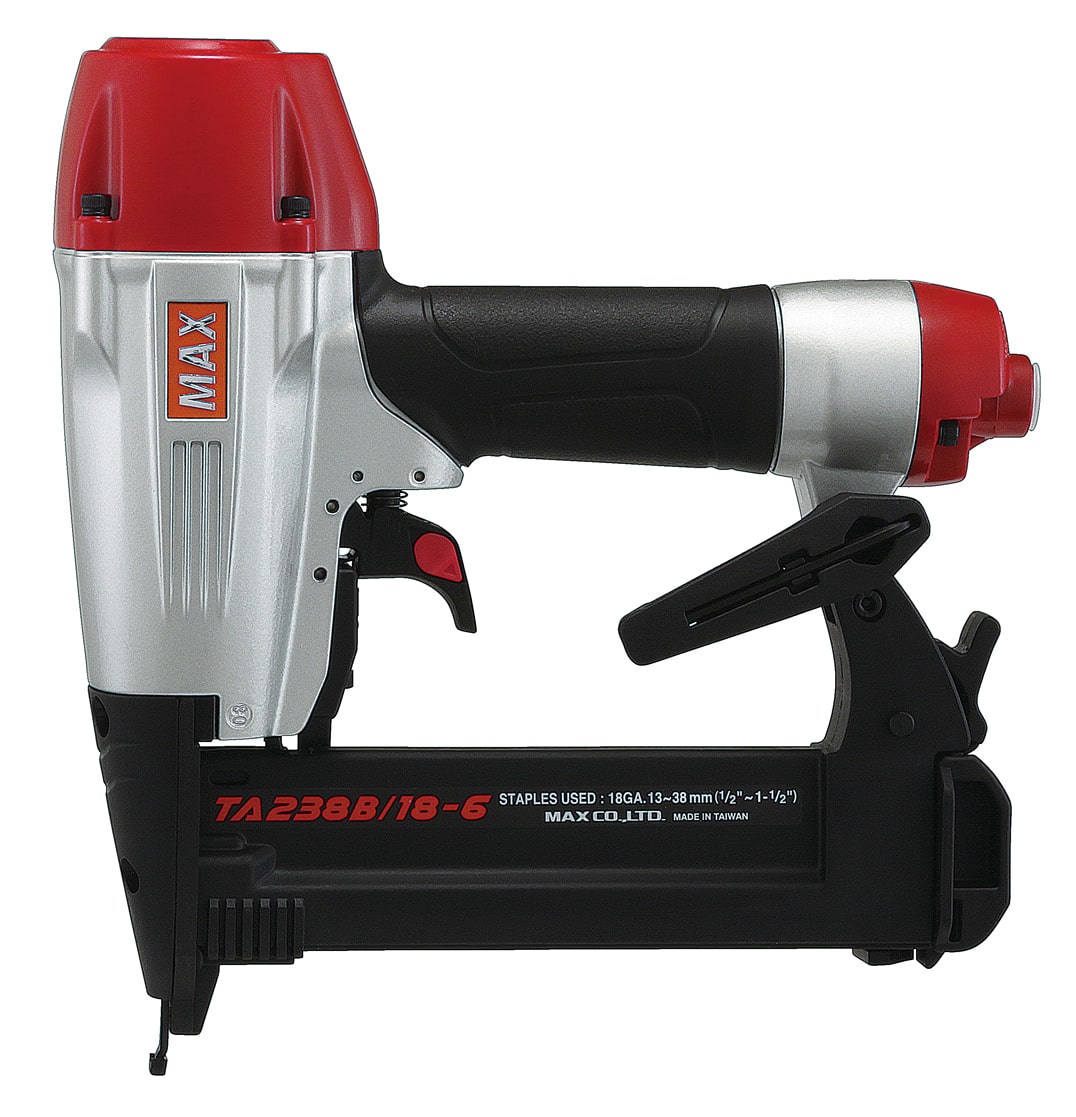

MAXMAX TA238B/18-6 - Hinge Installation Tool (13 - 38 mm) (18 ga)
€140,60 / Unit
€0,00 €140,60 / Unit

Description

Specifications

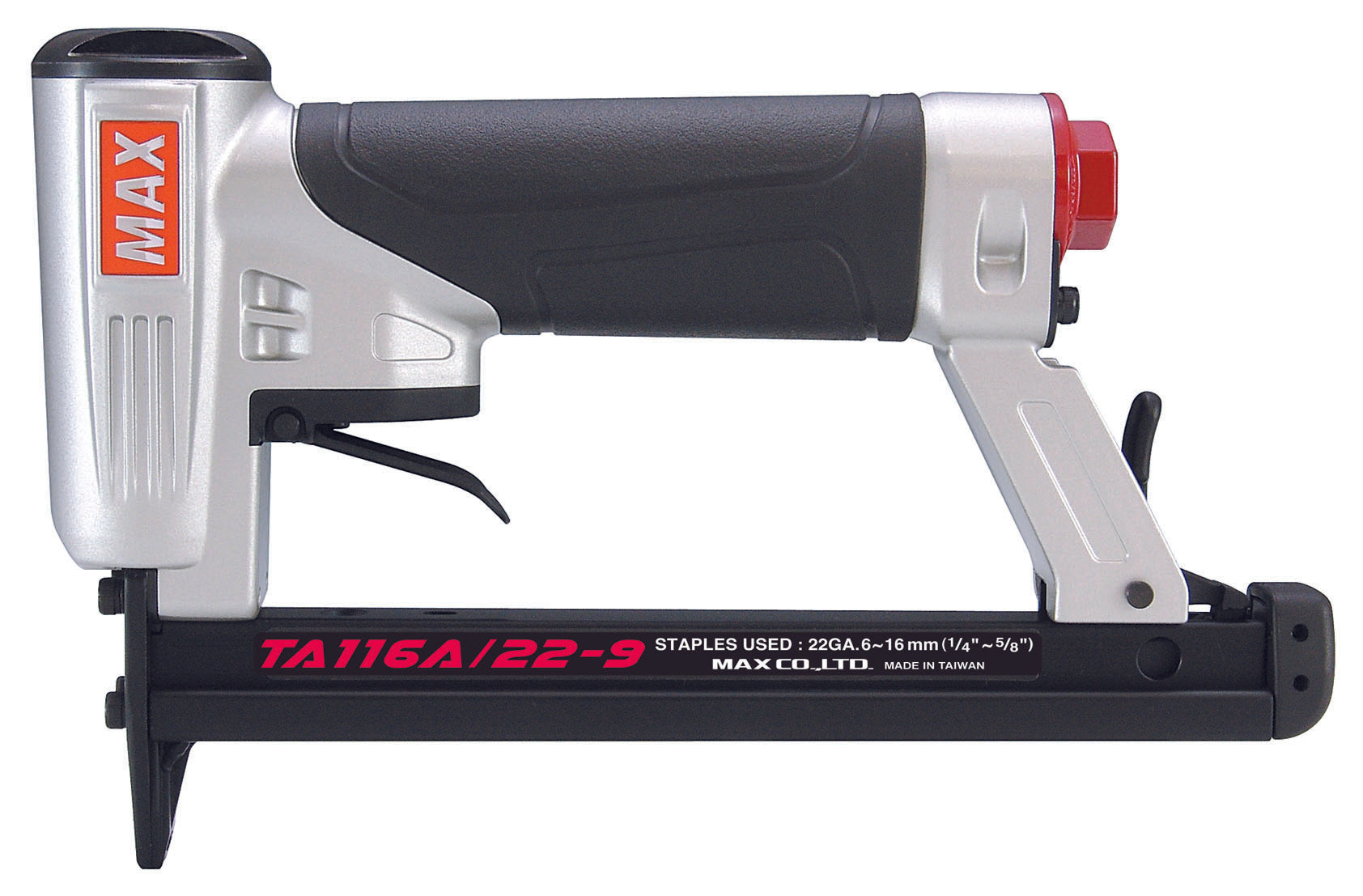

The MAX TA116A/22-9 SuperStapler is a top-class pneumatic staple gun. The TA116A/22-9 uses 6 - 16 mm long and 80 type staples. The TA116A/22-9 can be used for interior finishing, furniture assembly, carpeting and padding installation, and furniture upholstery fastening.

Applications:

  • Interior finishing;
  • Furniture assembly;
  • Carpeting;
  • Furniture upholstery fastening.

Brand

Max

Type

Staple gun

Accessories

safety glasses

Air-consumption

0.31 L/cycle at 7 bar

Crown-width

9.3 mm

Depth-adjustment

no

Dimensions

152 mm (H) x 48 mm (W) x 237 mm (L)

Fastener-type

AT/80 staples

Gauge

22

Magazine-capacity

180

Max-fastener-length

16 mm

Maximum-pressure

7 bar

Min-fastener-length

6 mm

Minimum-pressure

5 bar

Noise-level-lpa

80.1 dB

Noise-level-lwa

82.4 dB

Power-source

pneumatic

Quick-jam-release

no

Staple-thickness

0.55 mm

Staple-width

0.77 mm

Trigger-type

rapid-fire

Vibration-level

1.50 m/s²

Weight

1 kg
