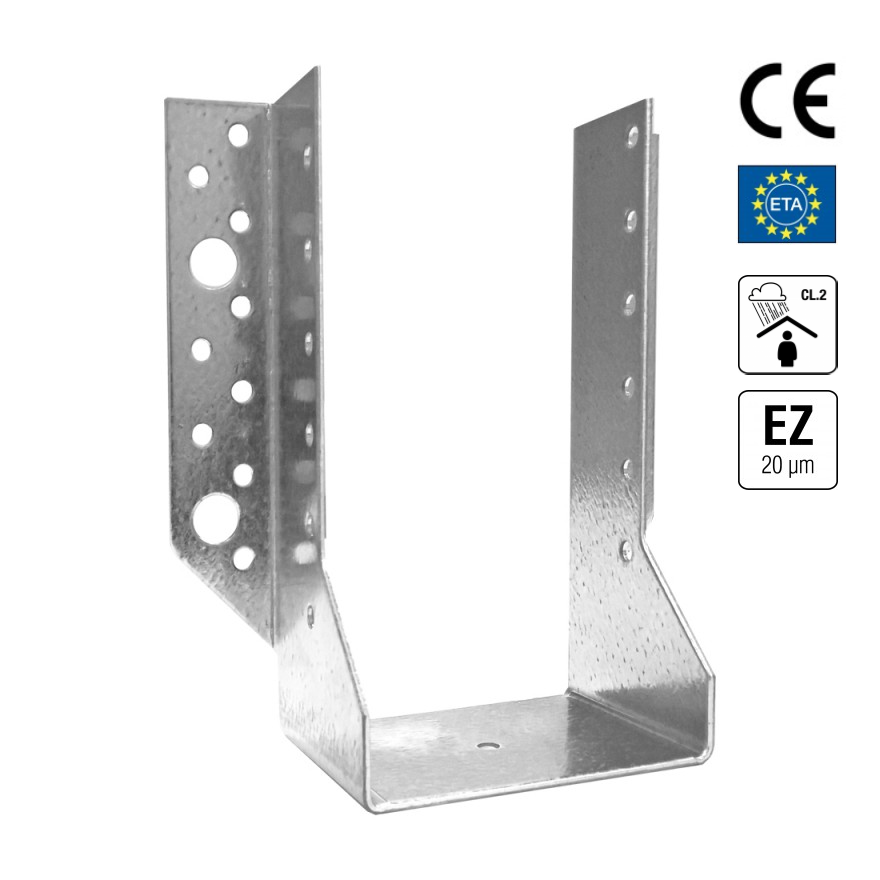

BSNN64/128 - Beam Holder (64 x 128 mm)

The BSNN series are robust brackets designed for use in cases where exceptional durability is required. The brackets are attached using CNA system screws, but their surface also has holes for 12 mm fasteners. The depth of the bracket must be at least 2/3 of the height of the supported element to avoid structural displacement, unless additional lateral reinforcement is added to the top of the supported element.

Material:

• Galvanized steel S250GD + Z275 according to EN 10346 (thickness: 2 mm).

Advantages:

• BSNN beam brackets are also approved for three-axis loads;
• Connections with concrete, steel, and masonry are allowed.

Usage:

• Beams, crossbars, joists, rafters;
• Reinforcement of existing joints.
