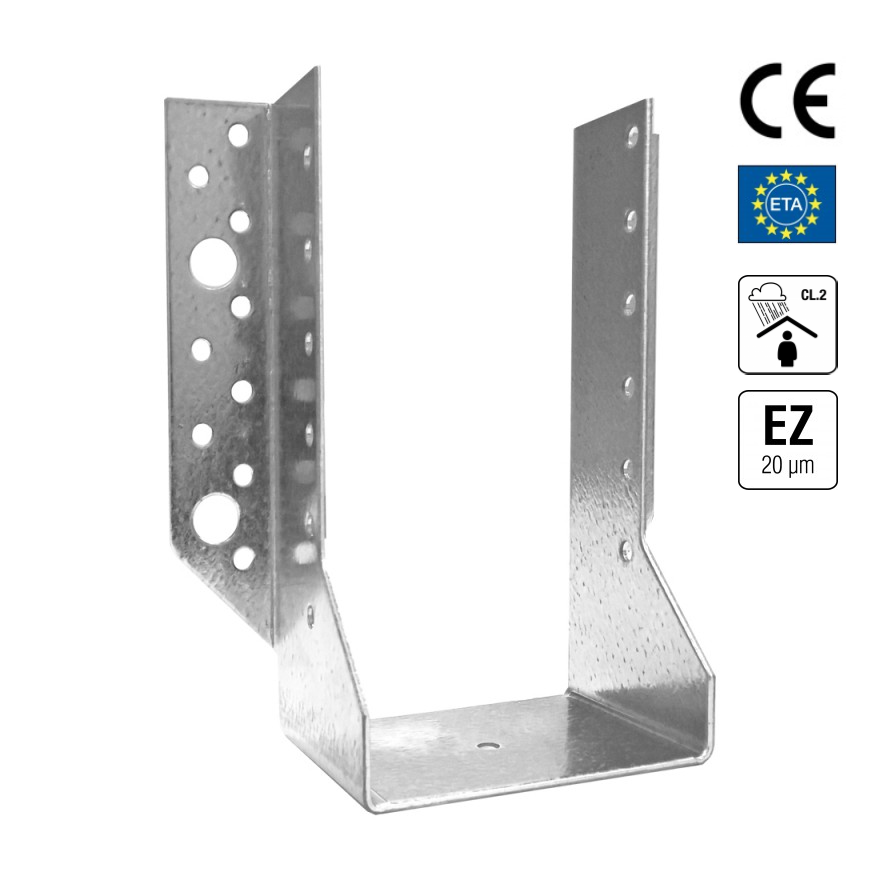

BSNN48/91 - Beam Holder (48 x 91 mm)

The BSNN series are sturdy holders designed for use in cases where exceptional durability is required. The hangers are attached using CNA system screws, but there are also holes on their surface for 12 mm fasteners. The depth of the hanger must be at least 2/3 of the height of the support element to avoid displacement of the structure, unless additional lateral reinforcement is added to the top of the support element.

Material:

• Galvanized steel S250GD + Z275 according to EN 10346 (thickness: 2 mm).

Advantages:

• BSNN beam hangers are also approved for three-axis loads;
• Connections with concrete, steel, and masonry are allowed.

Usage:

• Beams, crossbars, girders, rafters;
• Reinforcement of existing joints.
