WALCO V | Joint for assembled walls up to 16 kN*
System advantages:
- Universal - joints can be connected from wood to wood, to steel and to concrete;
- Designed for wood from 80 mm wide;
- Simple - if the board height is 13/15 mm, no need to insert the bracket (the counter screw can be inserted from the other side);
- Effective - fast and accurate assembly on site - fully assembled walls are assembled without any screws or bolts;
- Stable from the first wall corner;
- Saves labor - quick and easy assembly using a spacious V-shaped holder;
- Unique - screws are screwed directly into the component with or without an interlayer;
- Flexible - assembly up to the last wall and even internal walls;
- Adjustable and aesthetic - the joints are recessed, so they are not visible after assembly. Screws can be adjusted perpendicularly to compensate for construction deviations, e.g., for seals and spacers;
- ETA certificate (even for hardwood);
*KS = screw with hexagonal head, VK = supporting screw with collar, EH = adjustable supporting screw, GH = supporting screw with spring
Possible models:

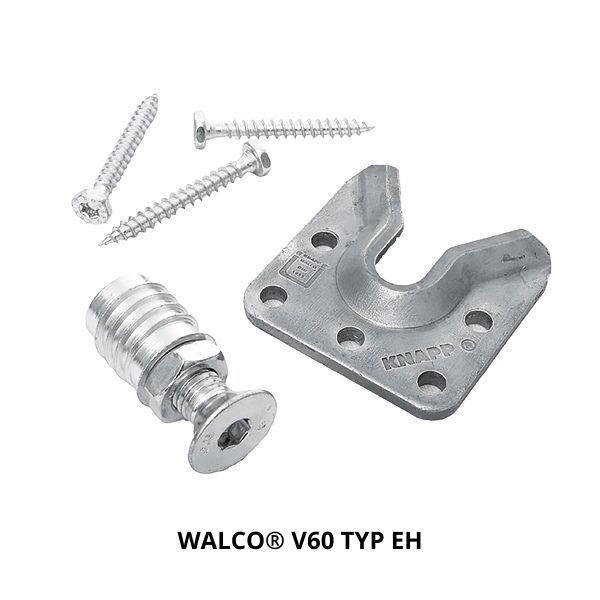

WALCO V60 TYP EH
WALCO V60 TYP GH
WALCO V60 TYP VK
WALCO V60 TYP KS

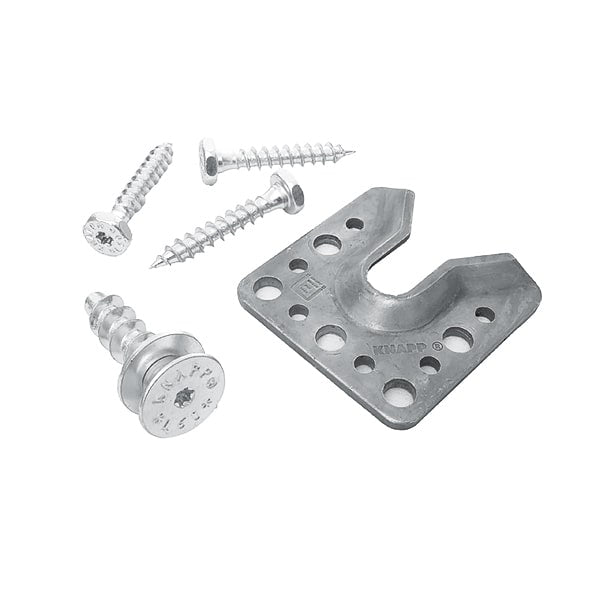

WALCO V80 TYP EH
WALCO V80 TYP GH
WALCO V80 TYP VK
WALCO V80 TYP KS
WALCO V slotted hole KS
WALCO V slotted hole VK
Dimensions | Production options:
