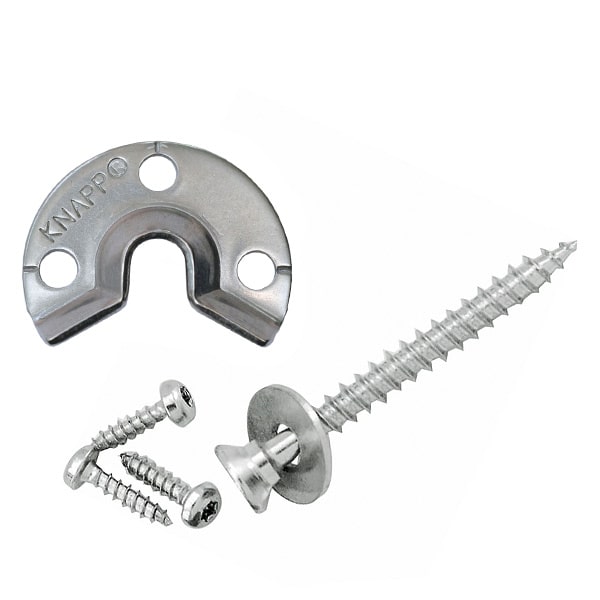

UNO 30 Hanging Joint Set includes:
- 1 pc UNO 30;
- 1 pc KNAPP CS screw 5x50 mm with a collar for precise height adjustment;
- 3 pcs. PH screws 3x13 mm A2 stainless steel.

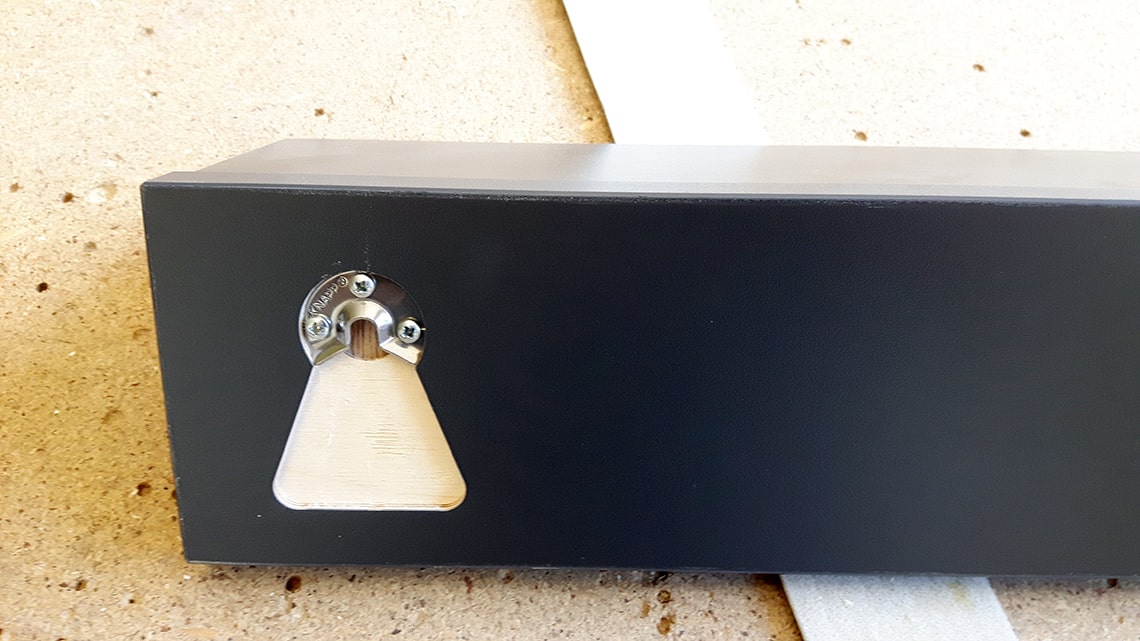

Easy and quick installation is guaranteed, the SK screw head is inserted into a spacious V-shaped groove. Optionally, a spring steel lock can be added, which locks the joint. Due to the round shape of the holder, it is easily mounted into a 30 mm / 7 mm drilled hole. Since the SK screw is attached to the component, the collar is designed so that it is perfectly set at the right height and easily fits into the holder, but at the same time provides the ability to adjust it to compensate for any dimensional differences. UNO 30 can be used with 5-6 mm screws.
Advantages:
- Simple and fast - lock in place;
- Hidden - the joint is not visible;
- Self-tightening - based on the dovetail principle;
- Fast - can be used with standard screws;
- Safe - the joint can be locked with a lock;
- Universal - used for various purposes;
- Strong - withstands up to 150 kg/1.5 kN.
Tip: UNO 30 is most commonly used for wooden components. However, it can also be used with standard dowels, thus opening up possibilities for attaching components to bricks, stones, concrete, dry walls, etc.
