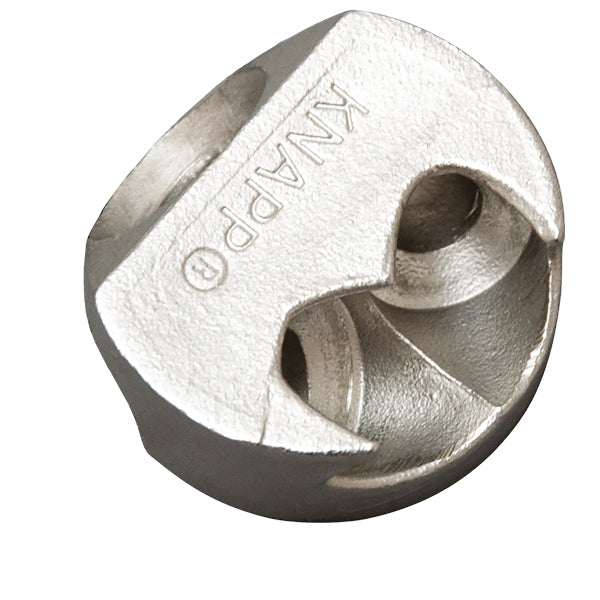

We introduce the new T-JOINT D40, designed for the tension and bending connections of two wooden components, using a double-angle screw fastening. Knapp Connectors has created an optimal solution for tensile and bending connections with the T-JOINT D40 W30 made of stainless steel casting. This new screw connection uses a double-angle screw fastening to directly transfer tensile forces from one component to another using three screws. The T-JOINT D40, certified according to ETA 19-0628 (class 3), can be used from 8 cm wide wood.
System advantages:
- Directly transfers tensile loads from one component to another;
- Can be installed in both visible and hidden locations;
- Removable tensile connection;
- Ensures gap tightness;

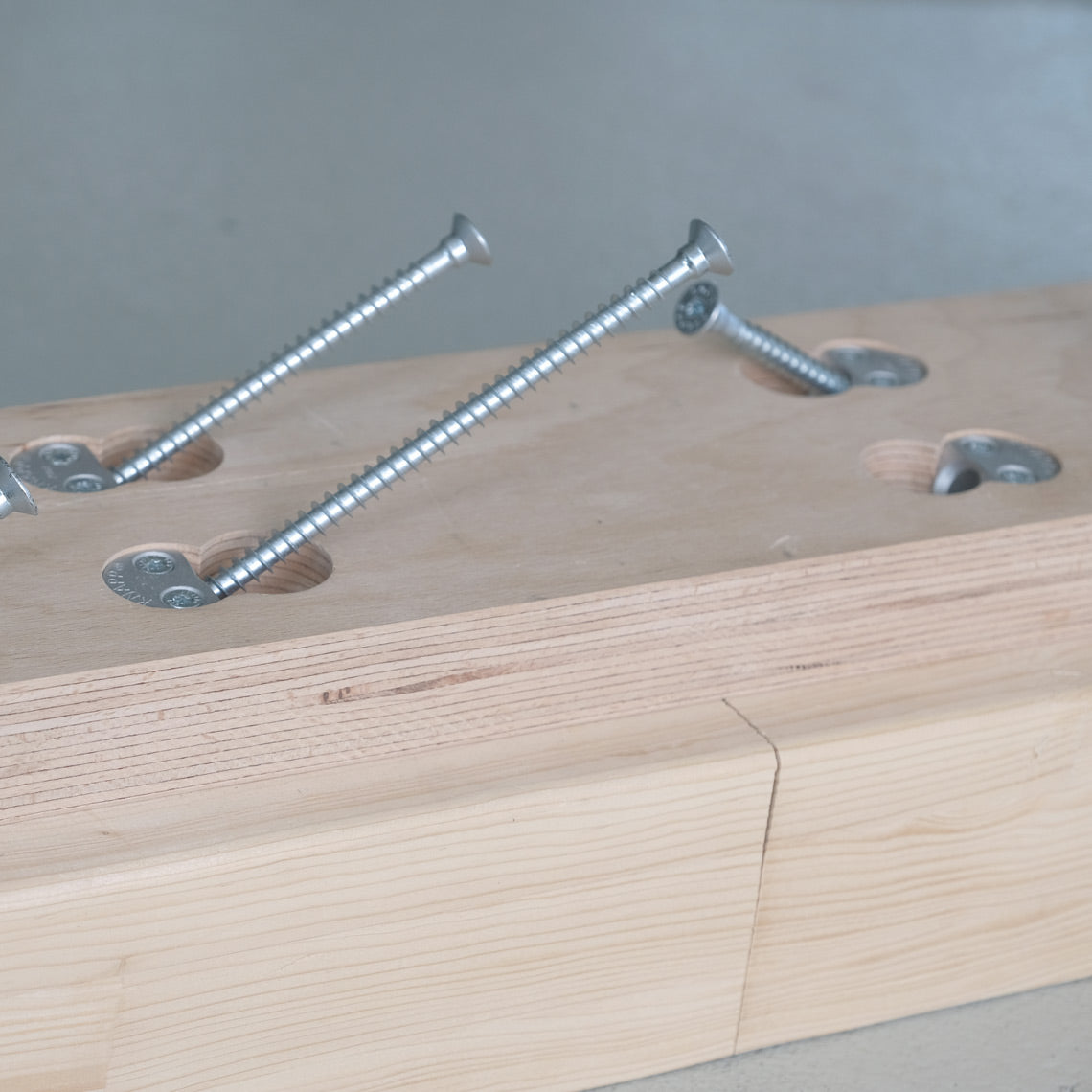

- Up to 26 kN tensile load is achieved using only 3 screws in the BSPH tensile connection;
- Minimal installation effort due to 3 mm deep position setting hole.
System usefulness:
- Smooth - no protruding connection parts;
- Locking - no gaps, can be adjusted at any time;
- Disassembled - can be disassembled and reassembled several times;
- Fast - high pre-production speed;
- Universal - suitable for wooden and steel connections;

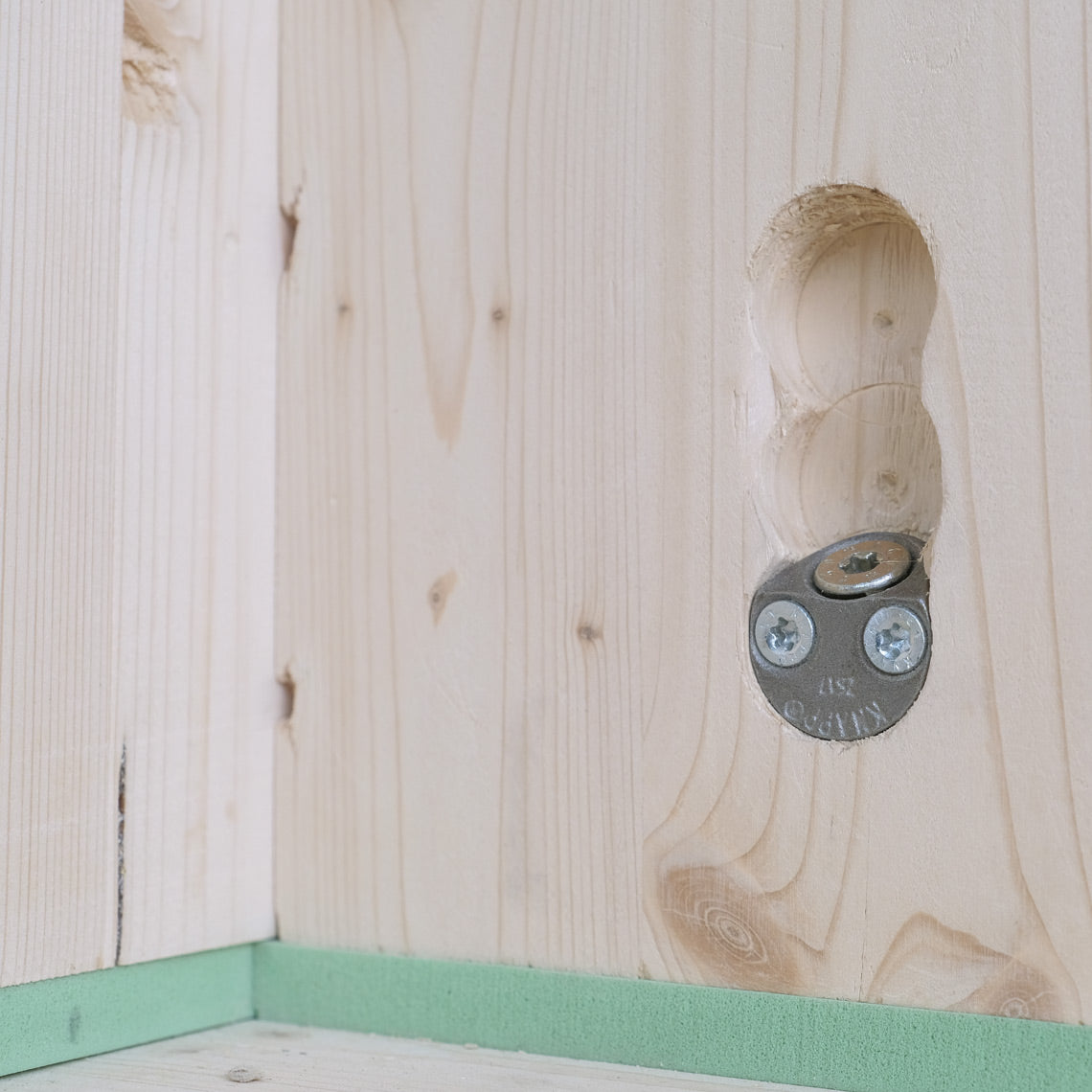

- Multifunctional - suitable for straight and angular wall connections;
- Simple - easy to set the position in the borehole.
Possible models:

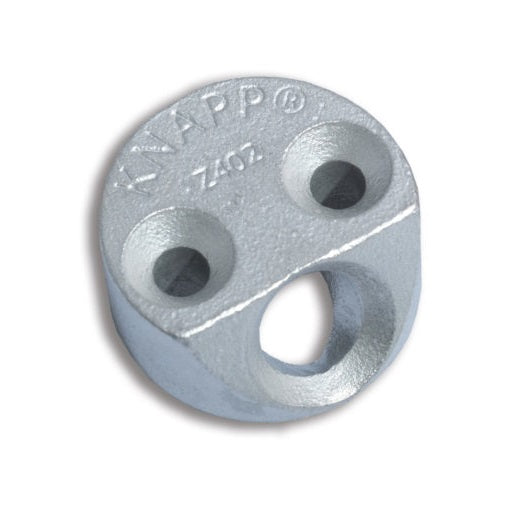

- T-JOINT D20 W45 (cast steel)

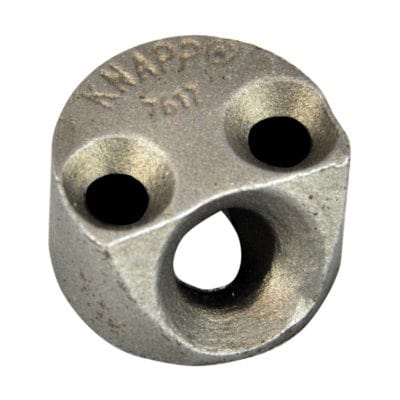

Diameter 20 mm, 45° angle. - T-JOINT D30 W30 (cast steel)
Diameter 30 mm, 30° angle - T-JOINT D35 W30 (stainless steel)
Diameter 35 mm, 30° angle
