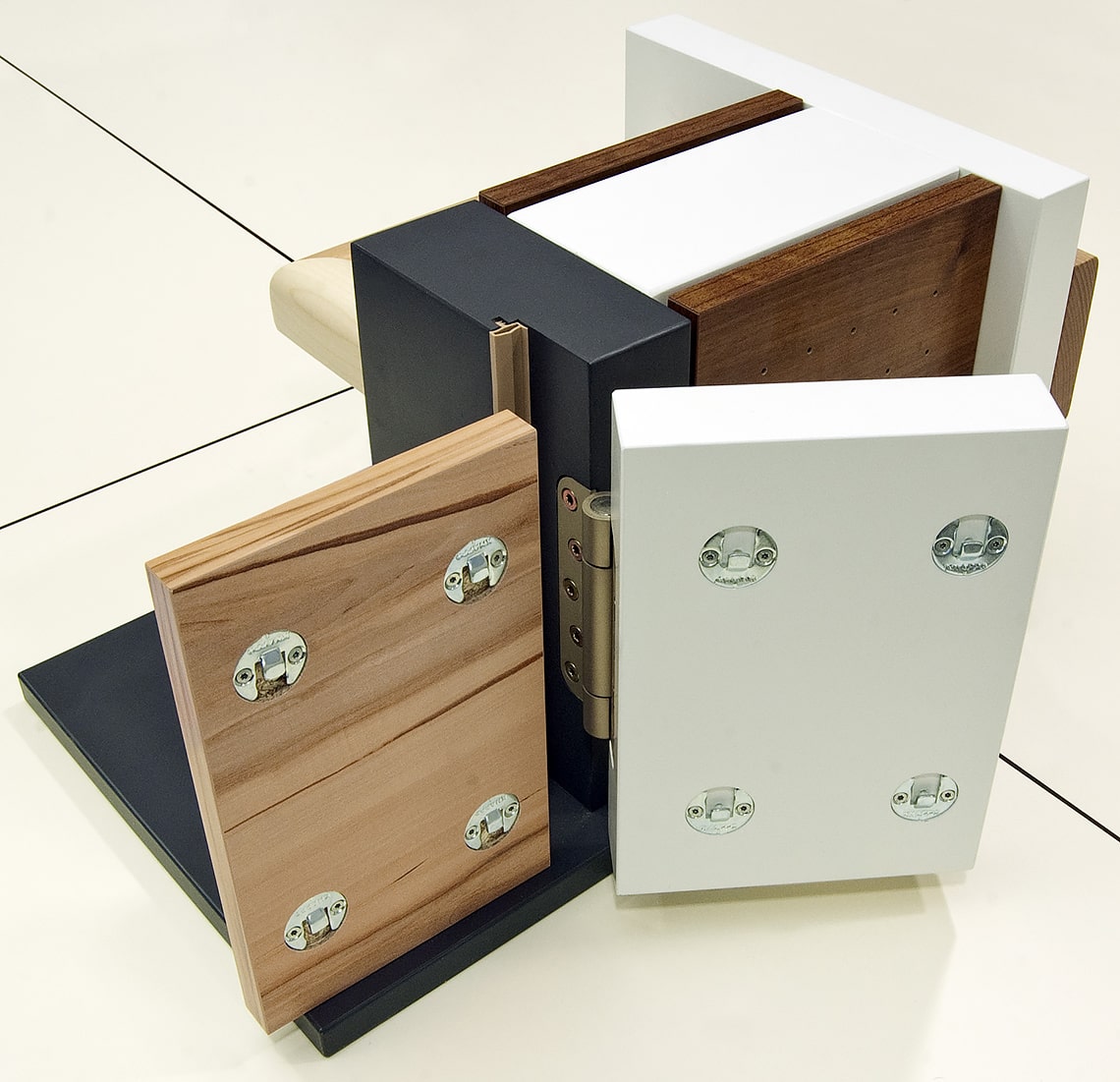

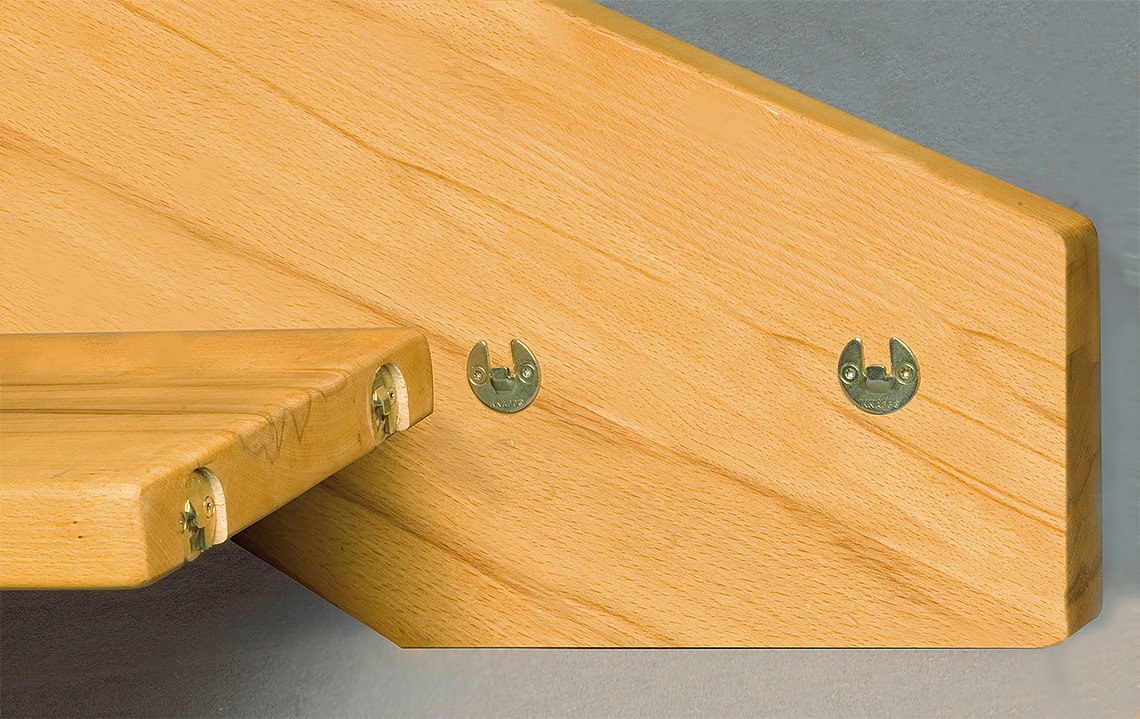

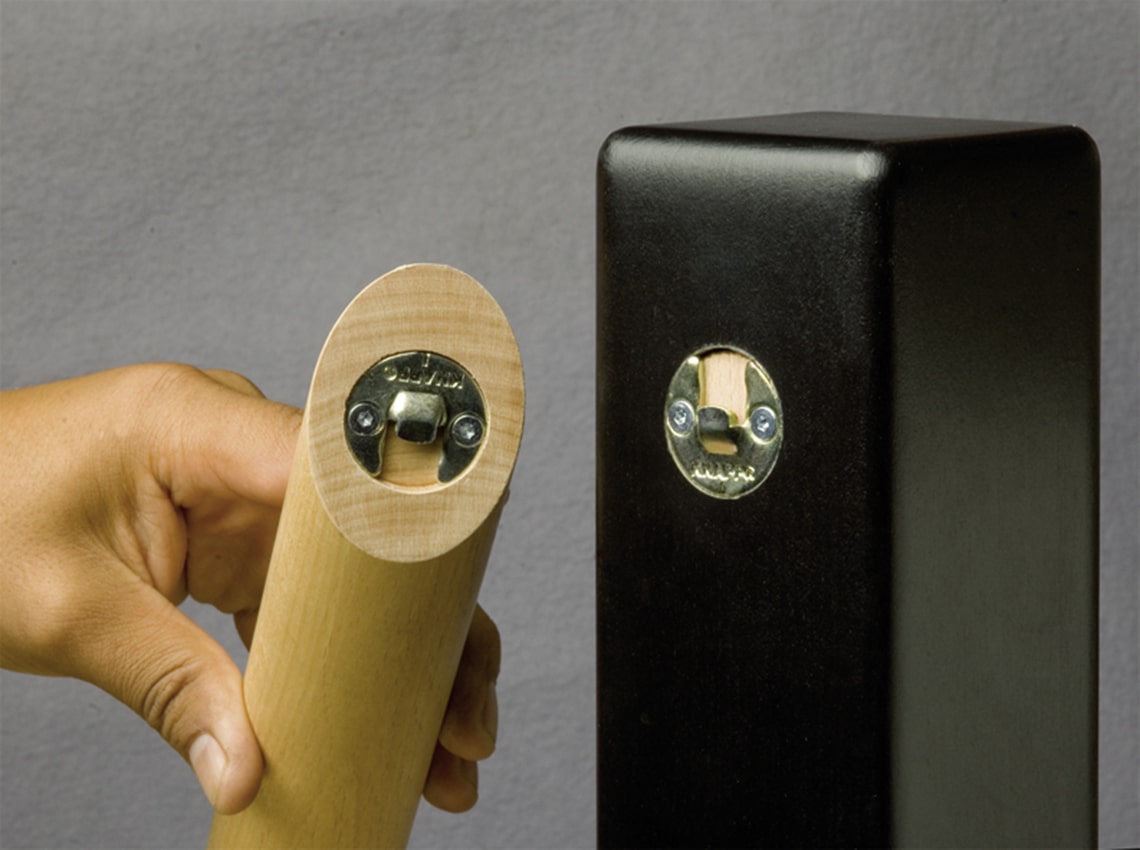

The DUO 30 and DUO 35 set consists of two identical round steel holders, which are joined together using a "dovetail" principle. The DUO 35 connection to the component is screwed on and is ideally suited for industrial use with CNC milling machines.
- Simple - easy to assemble by simply securing the components.

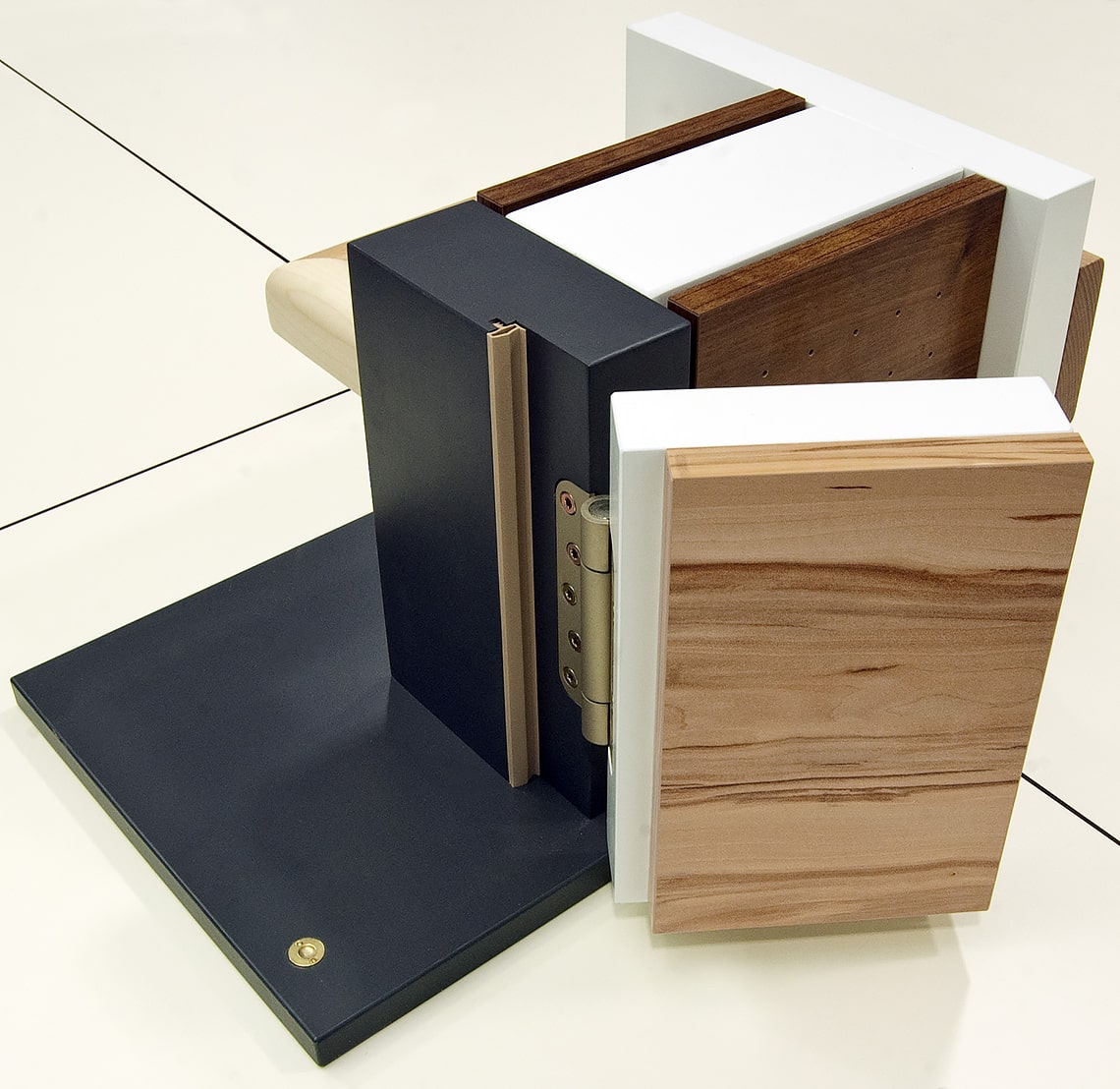

- Invisible - recessed and hidden fastening details.
- Reduces labor costs.
- Shallow recess depth - only 3 mm.
- Two sizes ø = 30 and 35 mm.

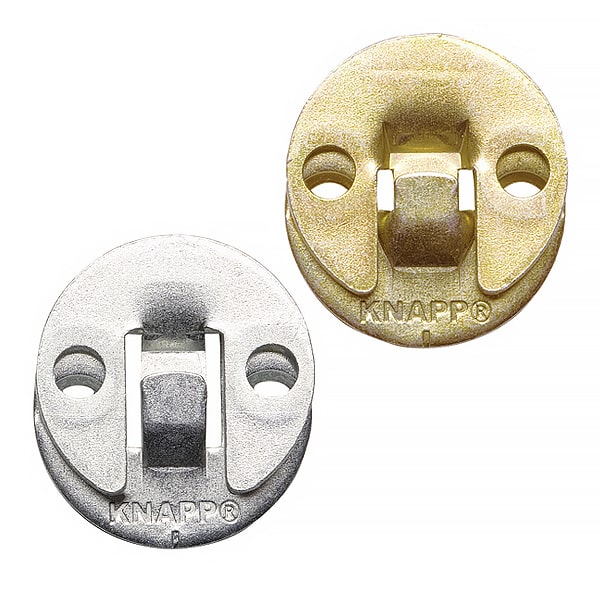

- Two versions mL / oL (with and without side deviation).
- Fast - can be used with standard screws.
- Hooking method 15 mm
Possible options:

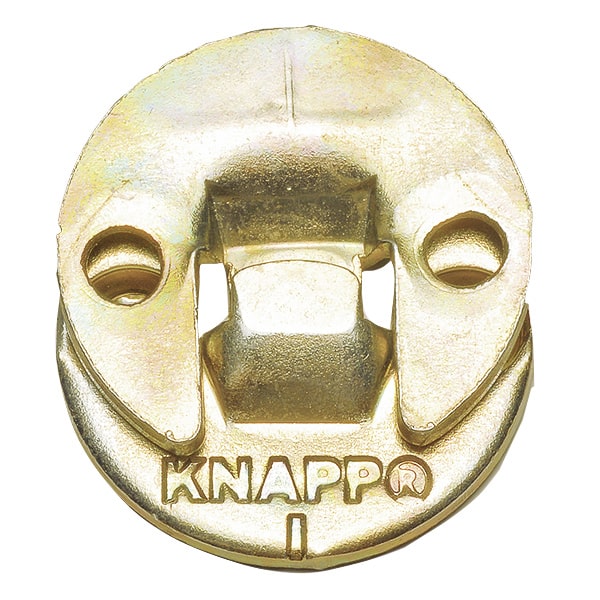

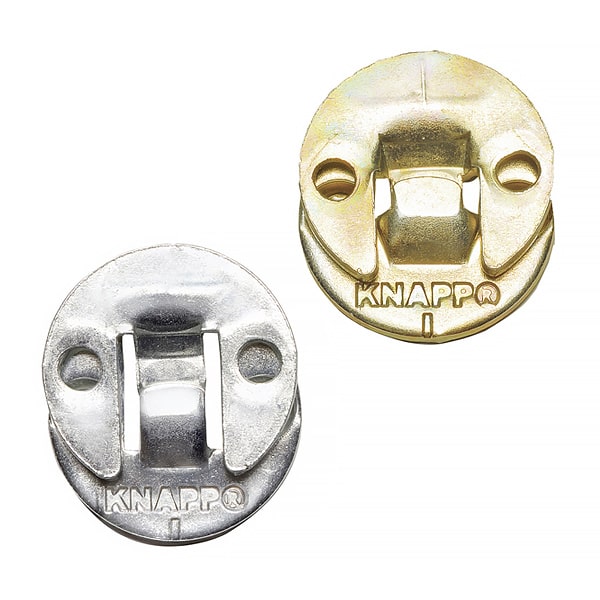

- DUO 30 oL - hook connection, steel, without side gaps, designed for precise component assembly, yellow zinc plated. Recommended screws: 6x10 mm (Art.No. Z510)

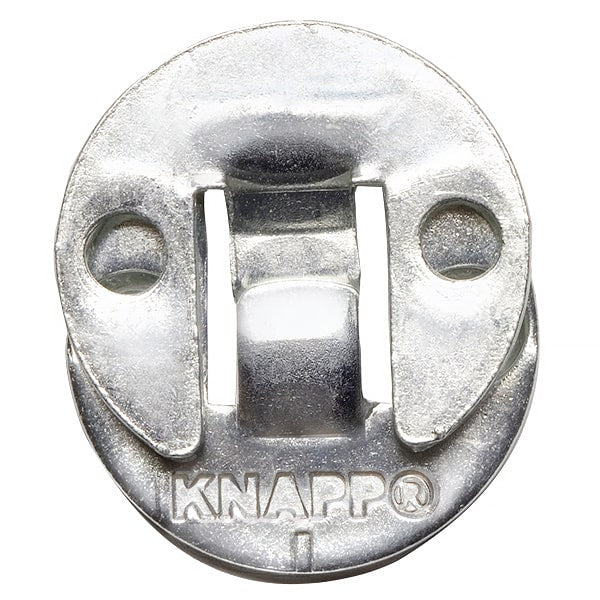

- DUO 30 mL - hook connection, steel, with space on the sides for components to contract and expand, blue zinc plated. Recommended screws: 6x10 mm (Art.No. Z510)
