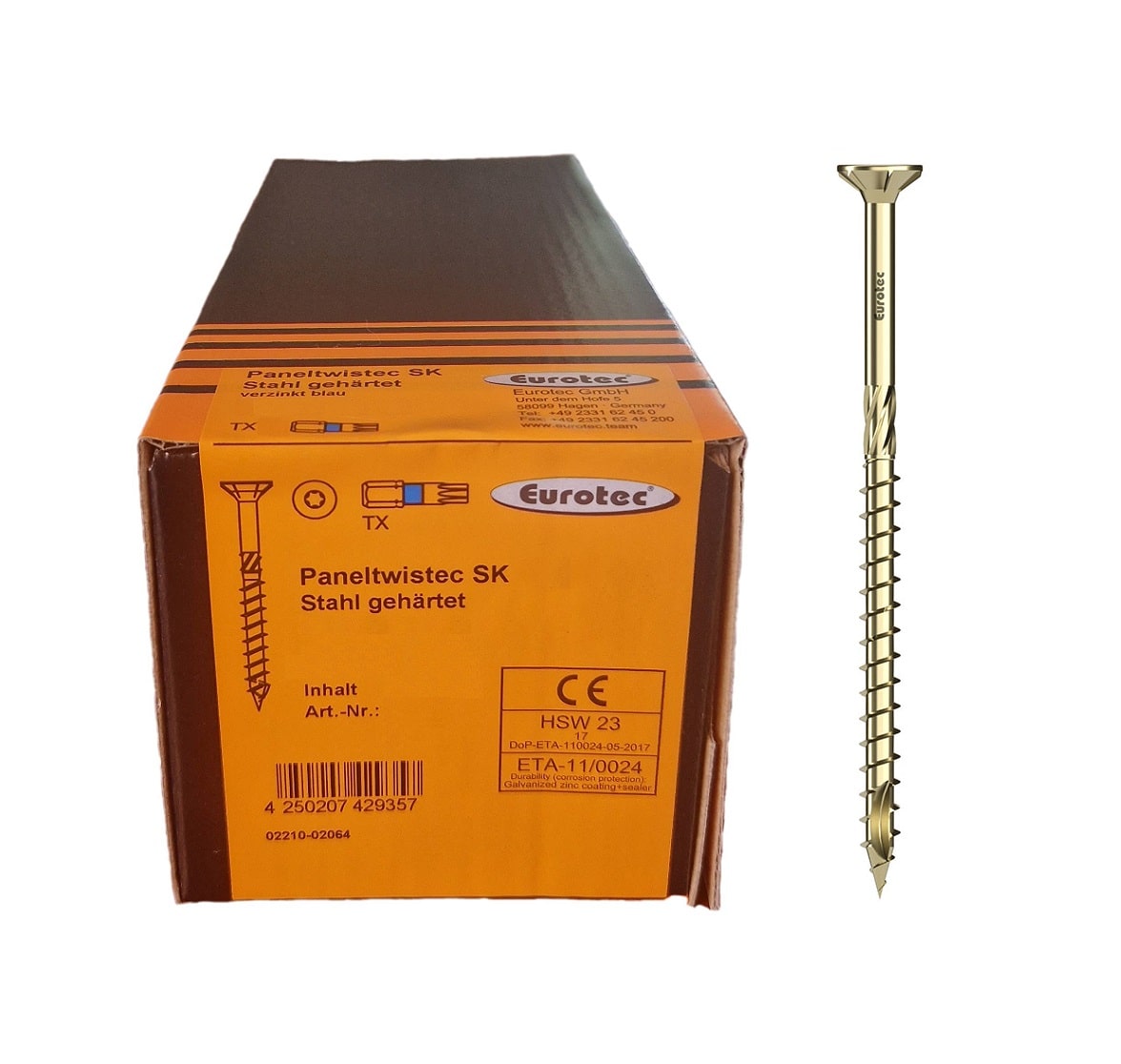

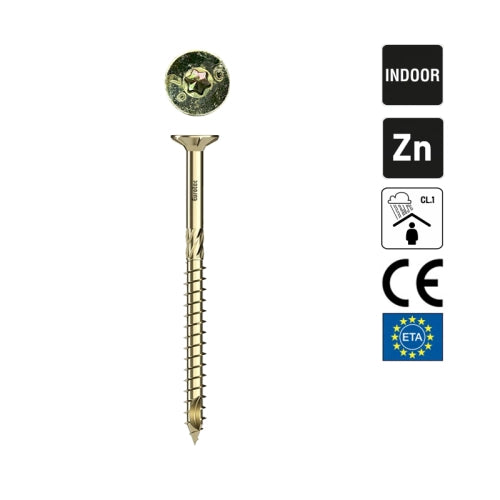

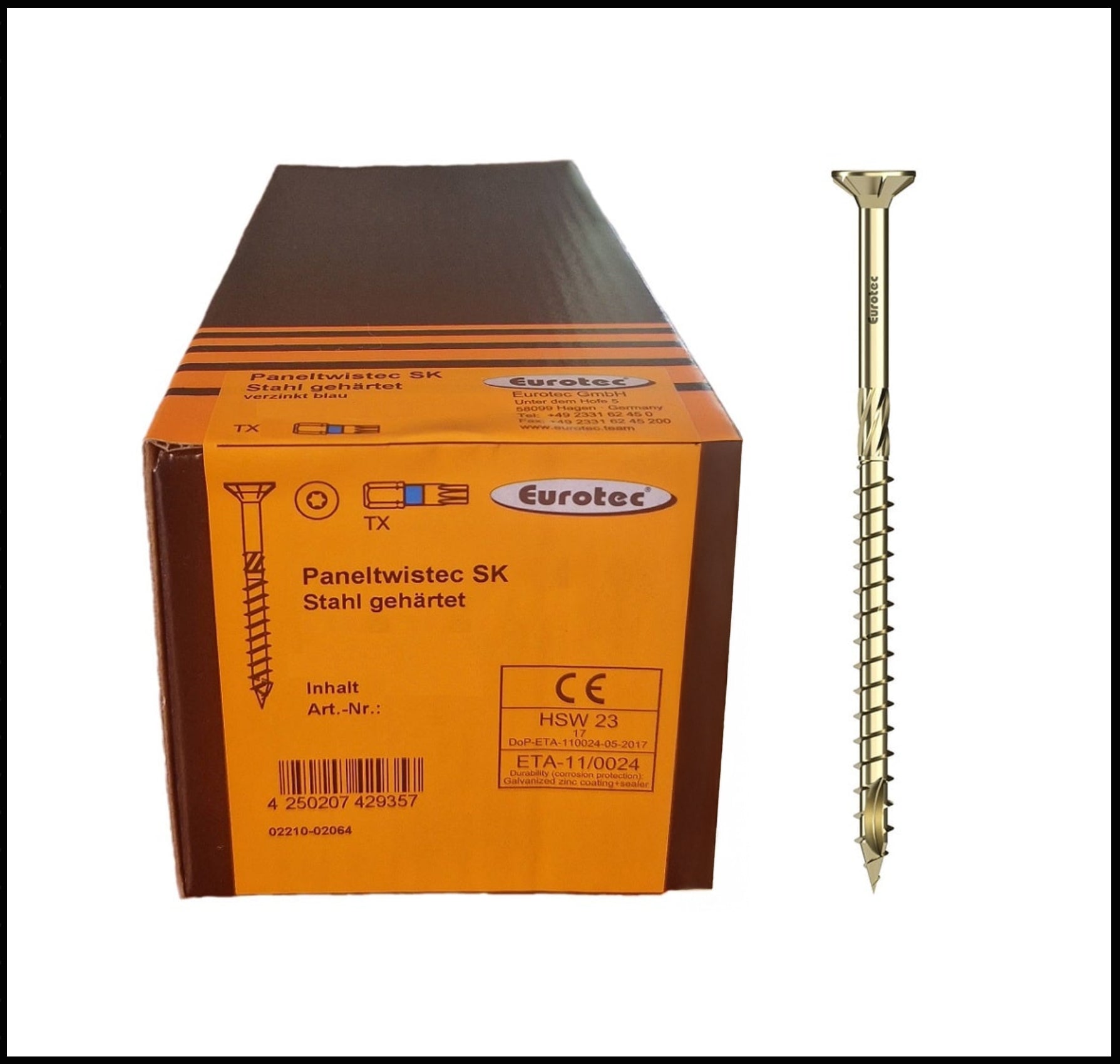

Eurotec Paneltwistec - Recessed Head Wood Screws, Zinc Coated (5 x 40-120 mm)

Product description
Paneltwistec wood screws are used as fasteners for load-bearing
timber structures between components made of solid timber, glued laminated
timber, cross laminated timber and veneer laminated timber, as well as similar
wood-based materials, board-shaped wood-based materials or steel-timber
connections. Paneltwistec wood screws can generally be screwed in without
any need for pre-drilling. The exception to this rule is when they are used in
deciduous wood / hardwood.

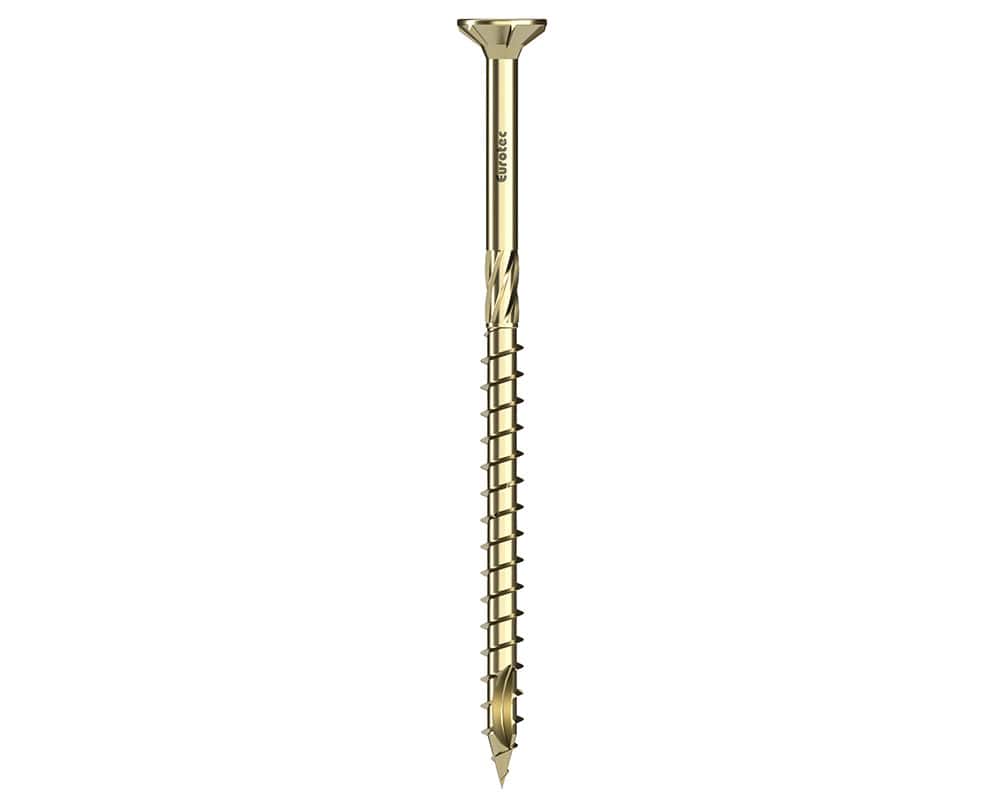

The scraping groove on the screw tip ensures that the screws “grip” quickly, even
in OSBs, for example. The cutting ribs downstream of the thread keep the shaft clear,
so even long screws can be inserted with ease.

The special screw geometry reduces the splitting effect when screwing in.

Paneltwistec wood screws come in countersunk head and flange button head
variants, and in coated carbon steel and a variety of stainless steels.

Material
Hardened carbon steel, blue / yellow electrogalvanized.
• Can be used in service classes 1 and 2 according to DIN EN 1995 (Eurocode 5)
• Not suitable for wood containing tannins

Hardened stainless steel (martensitic stainless steel 1.4006 (C1))
• Stainless steel according to DIN EN 10088
• Acid-resistant to a limited extent
• 20 years of experience without corrosion problems in suitable woods
• High strength
→ 50% higher breaking strength than A2 and A4 austentic stainless steel
→ Hardened due to heat treatment
• Magnetisable
• Can be used in service classes 1, 2 and 3 according to DIN EN 1995 (Eurocode 5)
• Not suitable for woods containing a large amount of tannins such as cumarú,
oak, merbau, robinia, etc.
• Not suitable for salty atmospheres
• Not suitable for chlorinated atmospheres

Advantages
• Resistant to mechanical stress
• Scraping groove and cutting ribs ensure quick and easy screwing-in
• The scraping groove reduces the risk of the wood splitting
• Approval (European Technical Assessment) and CE Declaration of Performance
• Screws can be screwed in smoothly thanks to the TX drive

Certification
• European Technical Assessment ETA-11/0024:
→ Self-drilling screws as wood fasteners for diameters of 3.5 to 12.0 mm
→ For fastening above-rafter insulation from diameters of 6.0 mm (usually diameters
of 8.0 mm
