ETB190-B - Hidden Beam Joint

Name: ETB190-B - Hidden Beam Joint
Brand: Simpson Strong-Tie
SKU: ETB190-B
Price: 37.68 EUR
Availability: InStock

€37,68 / Unit

~~€0,00~~ €37,68 / Unit

Shipping calculated at checkout.

Availability: 27 in stock

SKU: ETB190-B

Collections:

Concealed Beam Connectors,
Simpson Strong-Tie

Simpson Strong-TieETB230-B - Hidden Beam Connection

Simpson Strong-TieETB160-B - Hidden Beam Connection

€37,68 / Unit

~~€0,00~~ €37,68 / Unit

Description

Specifications

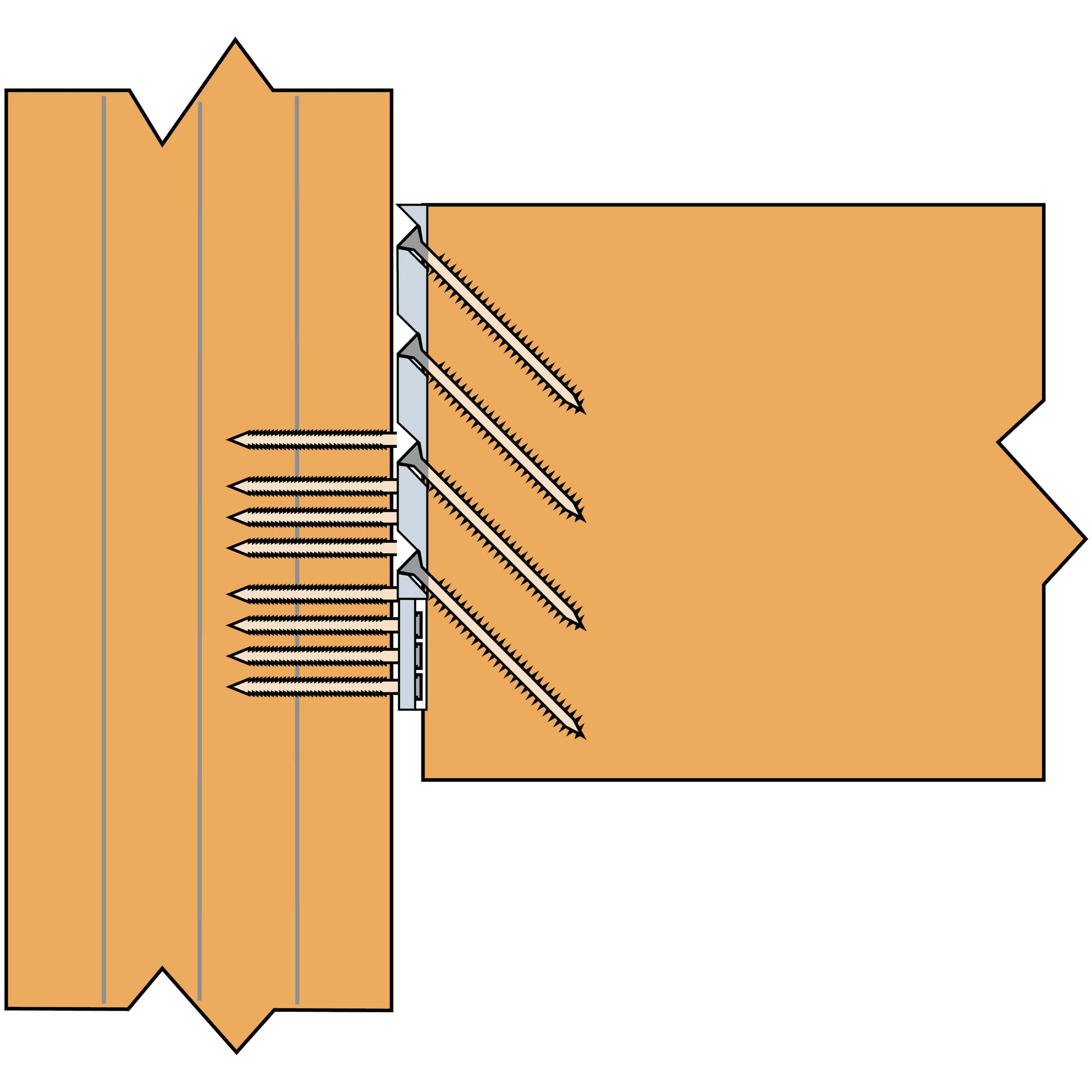

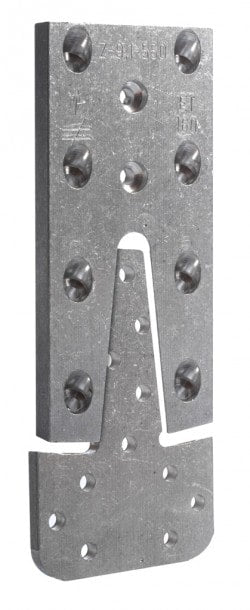

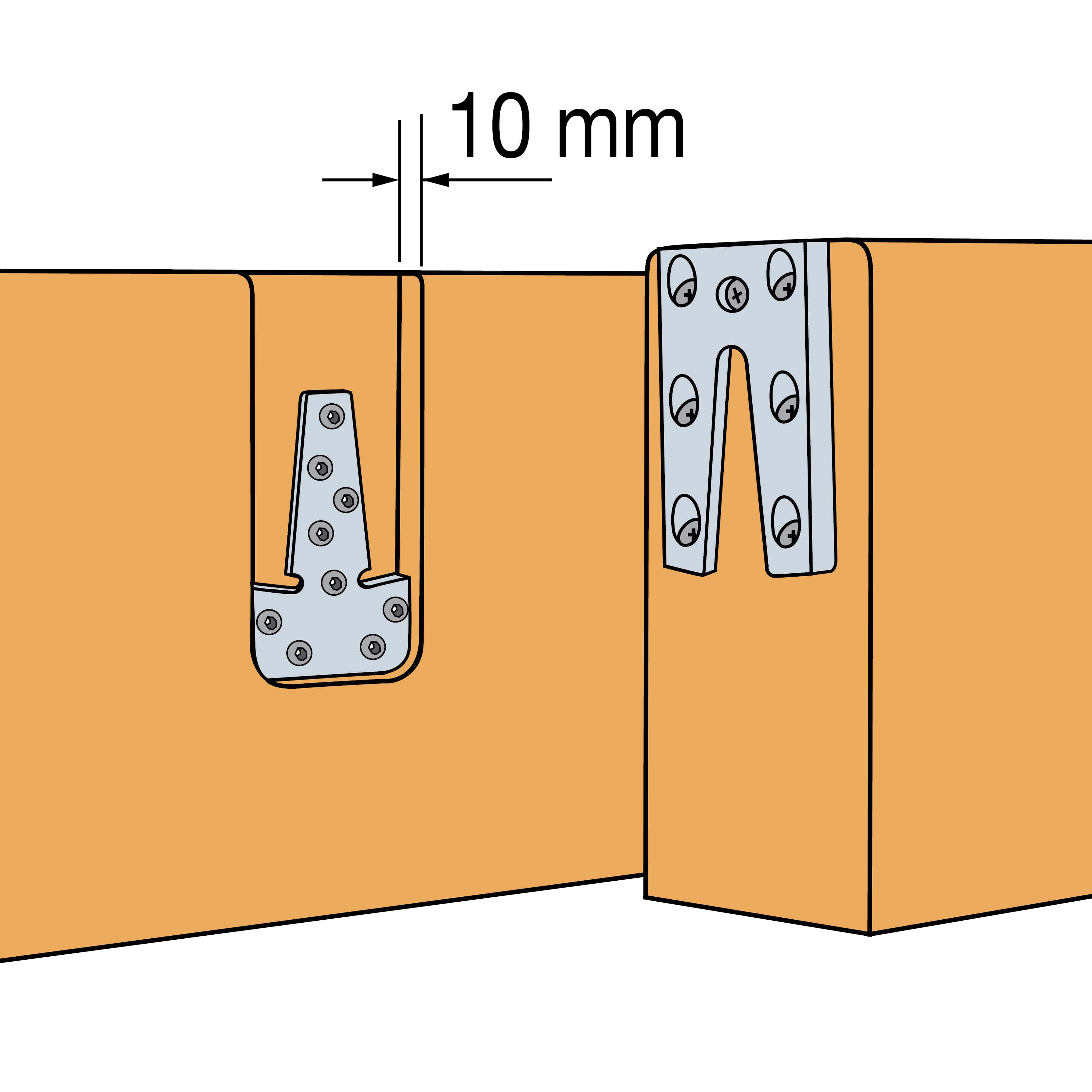

The hidden ETB connector consists of two parts. The first part is inserted into the main structure and secured with screws, while the second part is attached to the end of the beam with bolts.

Brand

Simpson strong-tie

Type

Concealed beam connector

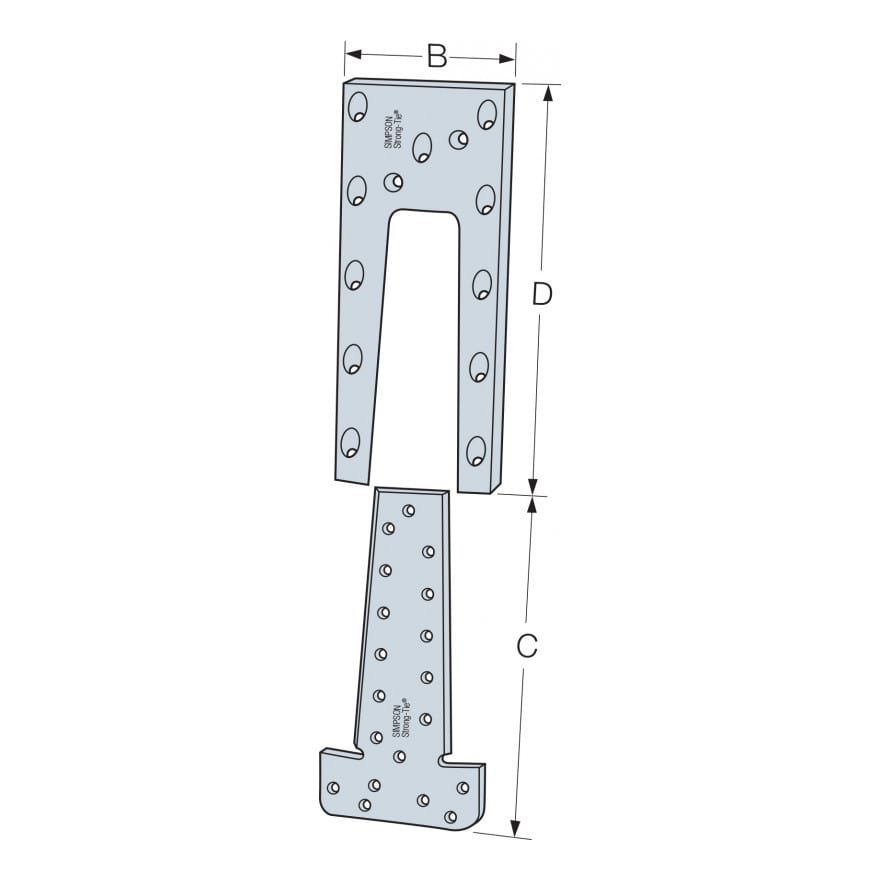

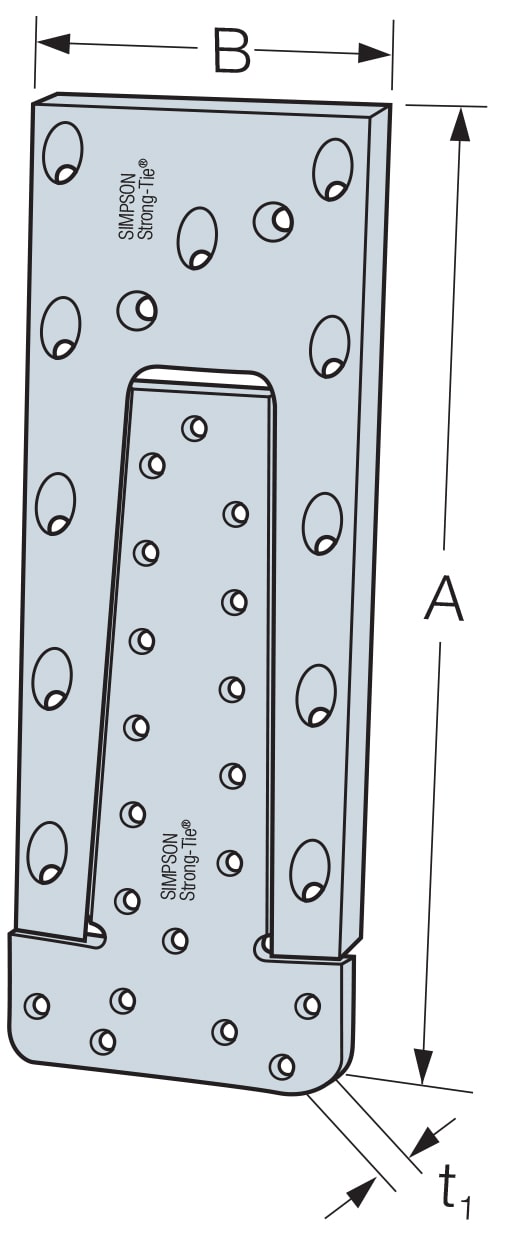

Dimension a

195 mm

Dimension b

75 mm

Dimension c

138 mm

Dimension d

165 mm

Material

aluminum

Thickness t1

6 mm

Thickness t2

10 mm
