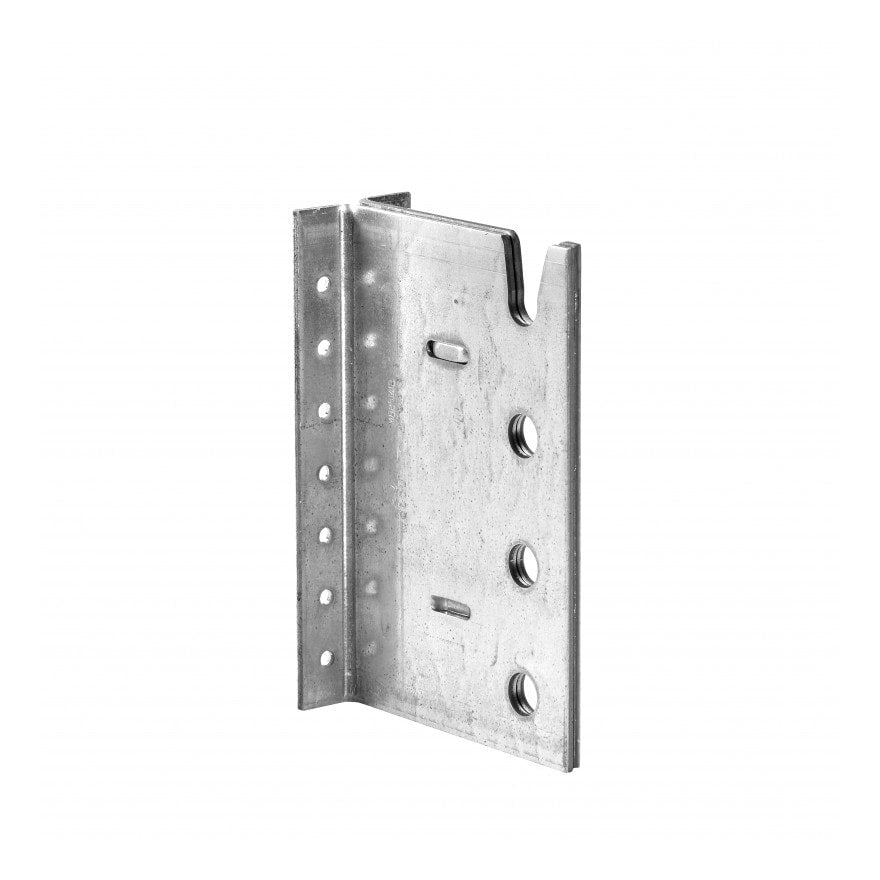

BTN120 - Hidden Beam Holder (120 mm)

Shipping calculated at checkout.
Availability: Out of stock
SKU: BTN120-B
Collections:

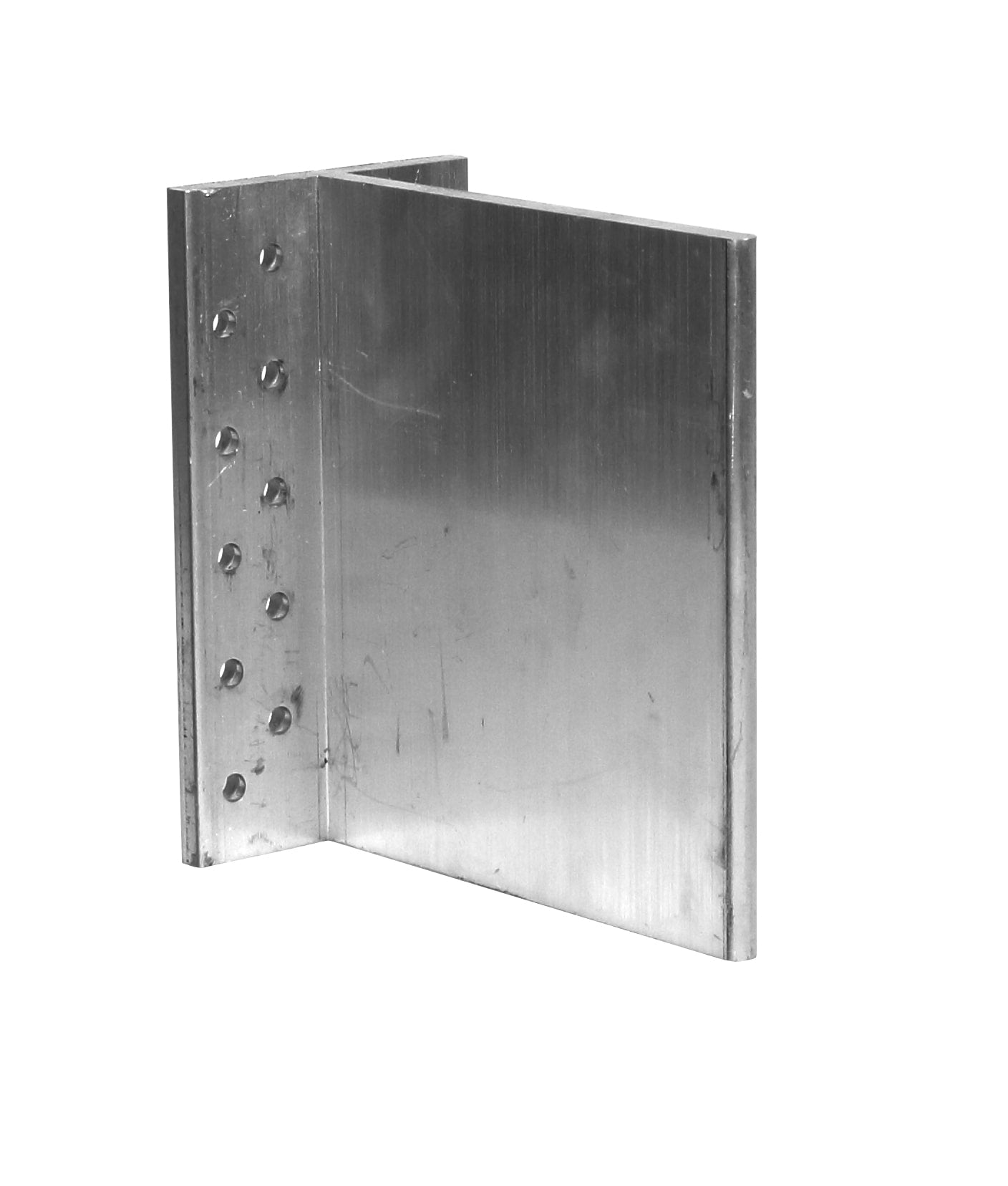

Simpson Strong-TieBTALU240 - Hidden Beam Holder (236 mm)
BTALU240 - Hidden Beam Holder (236 mm)
ETB90-B - Hidden Beam Joint
Simpson Strong-TieETB90-B - Hidden Beam Joint

Description

Specifications

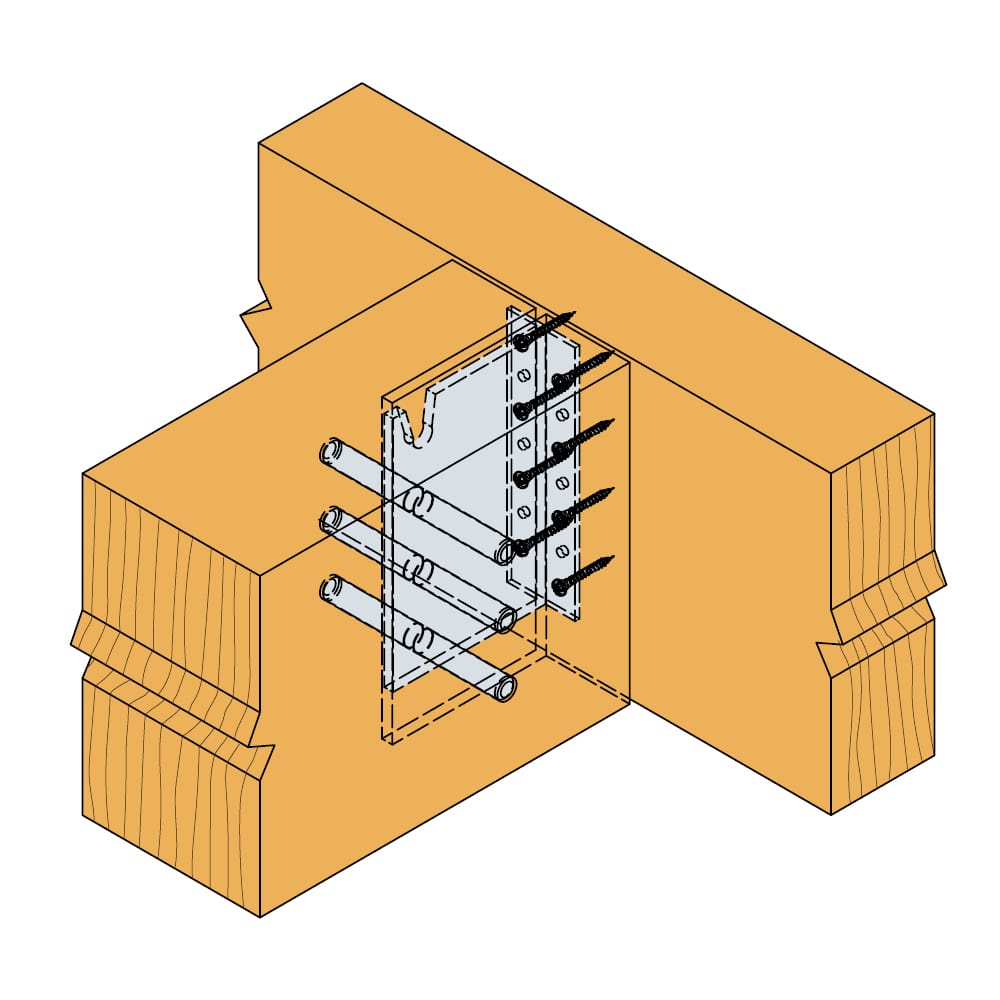

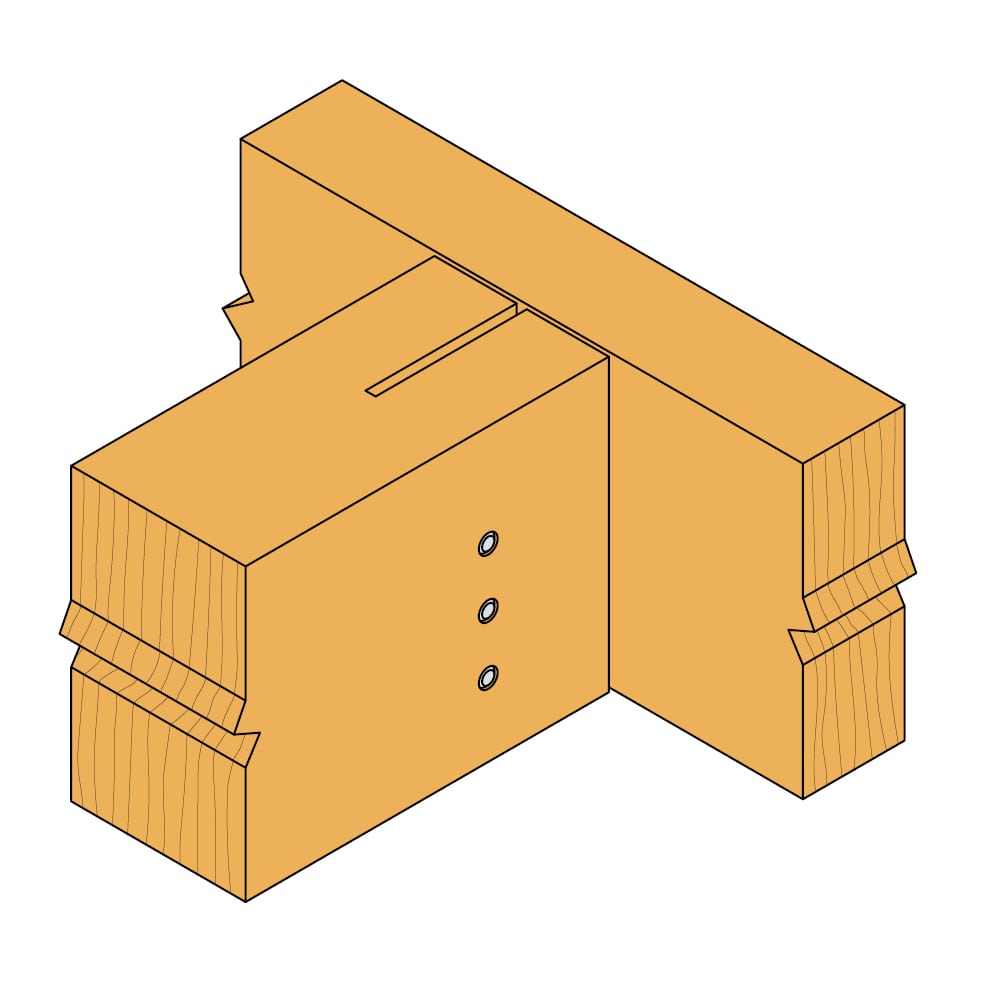

The BTN hidden holder is one of the solutions for connecting wooden elements while concealing the joint. The holder is attached to the main structure, then fully inserted into the incoming beam hole and secured with wedges.

Brand

Simpson strong-tie

Type

Concealed beam connector

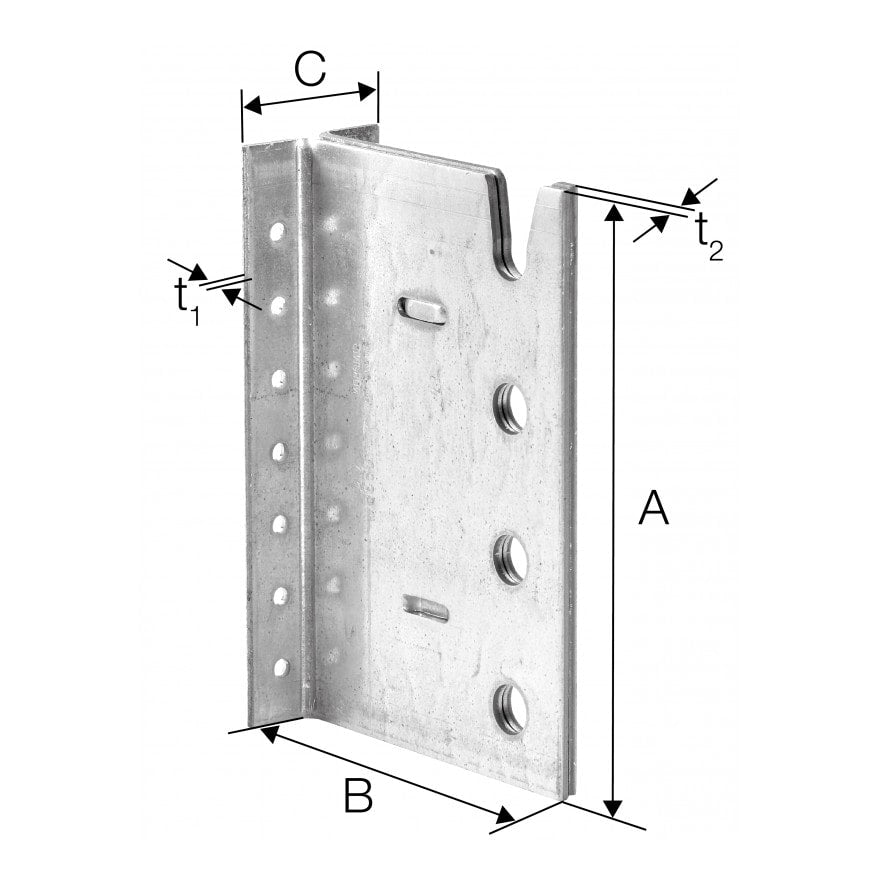

Height (a)

120 mm

Length (b)

103 mm

Material

electro-galvanized steel S 250 GD + Z 275 (DIN EN 10346)

Thickness (t1)

3 mm

Thickness (t2)

6 mm

Width (c)

46 mm
